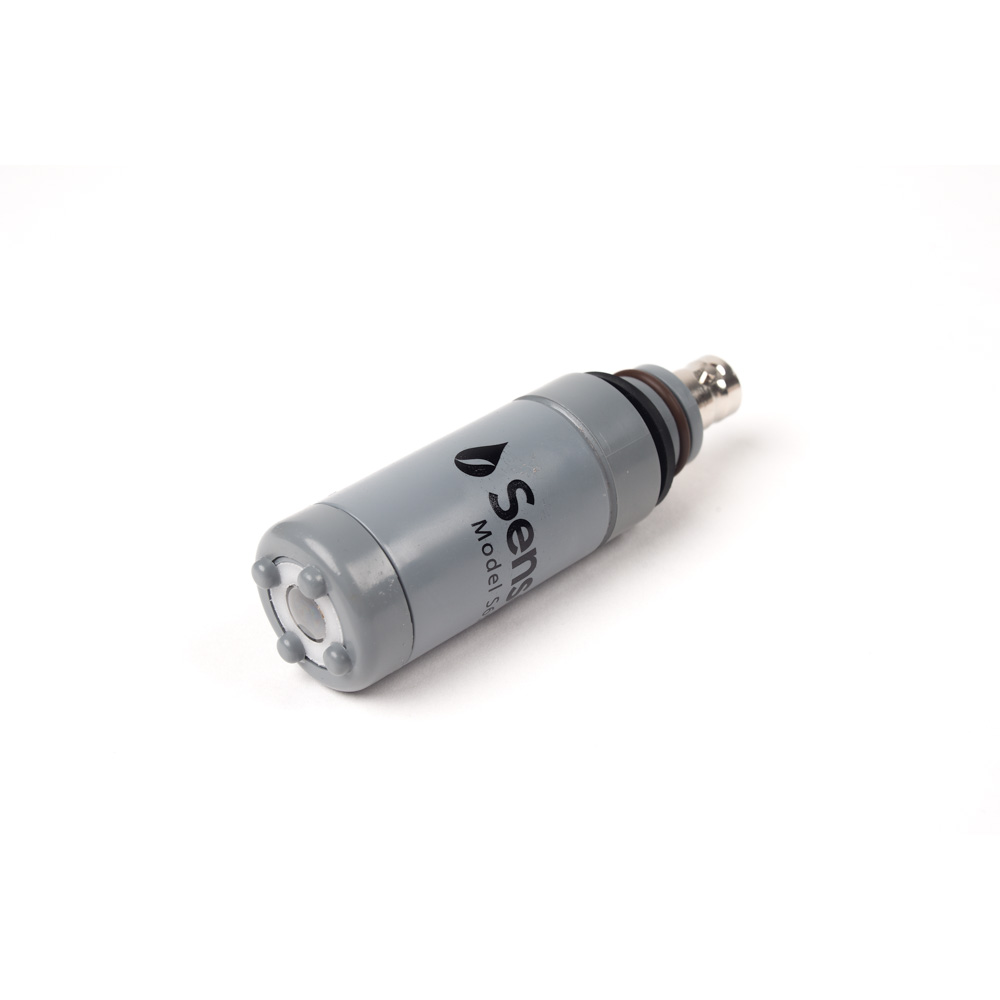

Sensorex - S656CD pH Sensor Cartridge (Hot Tap, Insertion)

The Sensorex S656CD sensor features flat surface, self-cleaning pH glass for extended maintenance cycles. Protective feet protect against breakage against ball valve or side walls.

$232.50
Part Number
  • S656CD
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Measurement Range:
  • 0-14 pH (low NA+ ion error)
  • Temperature Range:
  • 0-80⁰ C
  • Pressure Range:
  • 0 – 100 PSIG
  • Body Construction:
  • CPVC and HDPE
  • Response Time:
  • 95% in 1 second
  • Isopotential:
  • 7.00 pH
  • Offset:
  • 0.2%
  • Span:
  • > 97%
  • Connector:
  • BNR
  • Cable Length:
  • No cable; built-in BNR
  • Warranty:
  • One year limited warranty
Users installing into large tanks, large process lines and scrubber lines will appreciate this flat surface self cleaning pH sensor for use with our S675 hot tap (aka wet tap or insertion) assembly.  The sensor features flat surface, self-cleaning pH glass for extended maintenance cycles. Protective feet protect against breakage against ball valve or side walls. A unique feature of this sensor is mounting orientation. It can be mounted in any direction whereas most pH sensor should be mounted 5 degrees above the horizontal plane.  With the quick disconnect BNC, sensors can be changed in seconds should replacement be required. Designed for use with our S675 Assembly and a BV-1Ball Valve for a complete hot tap pH measurement solution.
