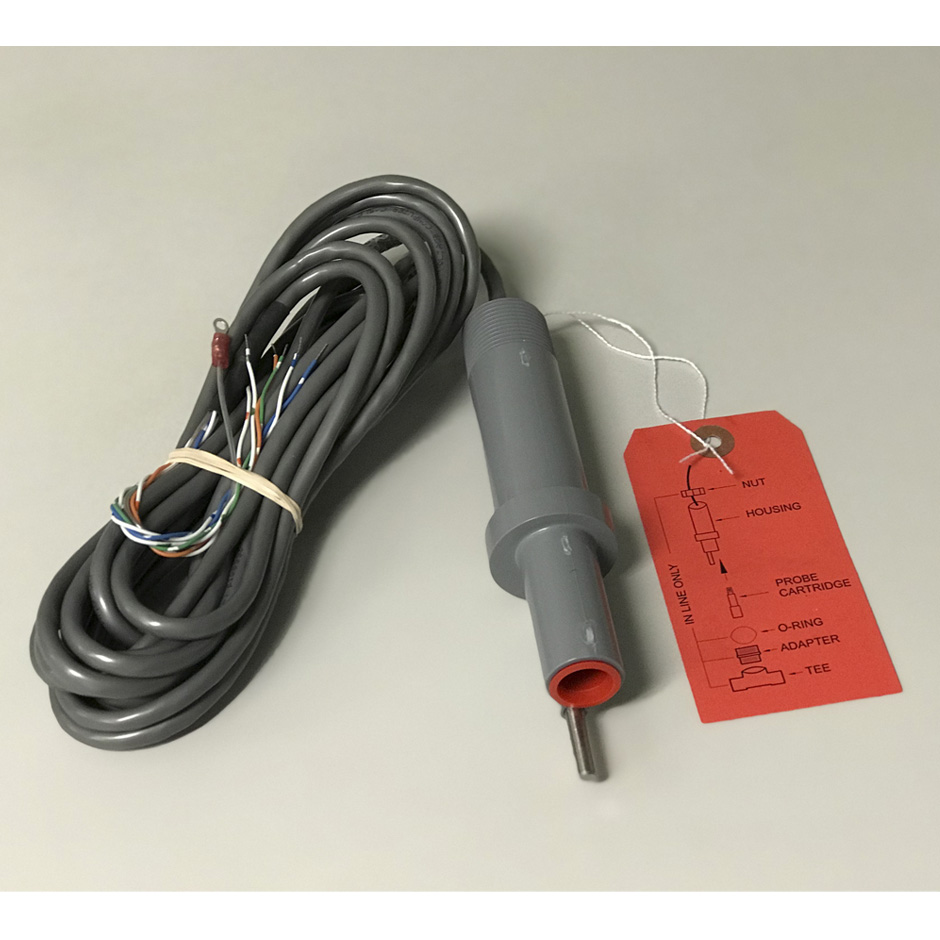

Walchem - Preamplifier Housing for WEL sensor with ATC

Walchem Preamplifier Housing, pH/ORP, ATC, 20 ft. cable, with WEL sensor.

$396.00
Part Number
  • 102581
Manufactured
Availability
  • 3 in stock

Features

  • Range:
    • 0 to 14 pH (0 to 12 without sodium ion error)
    • ±1999 mV (ORP)
  • Response:  95% in less than 5 seconds
  • Operating Pressure:  100 psig
  • Cartridge Impedance:  Not to exceed 1000MΩ over temperature range
  • Housing Impedance:  Preamplified version - 100Ω for pH/ORP
  • ATC:  included
  • Cable:  20 feet
  • For:  WEL Sensor
Walchem's WEL Series electrodes are cost-effective differential pH and ORP electrodes for industrial applications. The differential preamplifier and temperature compensation element are in the housing, and are not thrown away when the electrode needs replacement. The electrode is powered by the controller, it is connected so the signal is always preamplified and there are no batteries to go dead. A titanium solution ground rod integral to the housing enables the differential measuring technique. This results in prolonged electrode life and reliable measurement, resistance to stray voltages and currents or ground loop problems.
