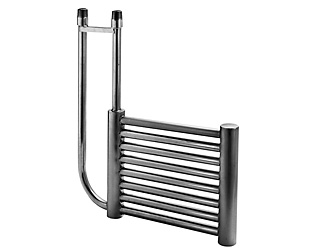

Process Technology - Grid Coils

Features

• Heater sizes: 4.6 square foot to 89.9 square foot of exchange area
• Heavy wall, 20-gauge
• Metal tubing available in steel, 316 stainless steel, and titanium
• 2-inch thick, low profile design, every inch of coil surface is active exchange area
• Integral inlet and outlet manifolds for single point connections
• One inch MNPT connections standard
• 100 PSI working pressure (steam or water)
• Options:
• Mounting hangers and special sizes
• Vertical or horizontal configurations
• Heavier gauge tubing or pipe
• Special riser sizes, fittings, lengths, and configurations
• Anti-floatation weights for high specific gravity or highly viscous solutions
• Zirconium, Hastelloy C®, low carbon stainless steel, and other alloys available
• NOTE: Inlet and outlet connections must be sized to adequately handle water and steam volume requirements.
