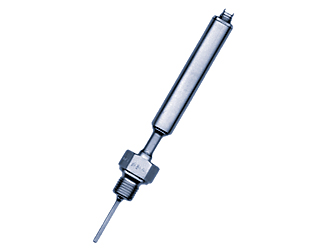

Burkert - TST001 Temperature Sensor
The Burkert TST001 is a temperature thermometer with 1xPt100-temperature probe integrated in stainless steel tube.
Overview
Features
- Available with transmitter
- Wide range of applications for neutral and aggressive fluid
- Measuring range is 0 up to +150°C
- Ambient temperature to a maximum of +85°C
- Measuring current is approximately 1 mA (film measuring resistor)
- Electrical connections is a Lumberg connector with/without cable
- Protection tube material is stainless steel 1.4571
- Accuracy is class B ( T [grad]= ±0.3 ±0.005 T [°C]
- Output signal is 4 up to 20 mA (correspond to 0 up to +150°C)
- Circuit type is a 3-wire circuit
- Protection class of IP 67 with connector
- Connection is external thread G 1/2 A
Description
The Burkert TST001 is a temperature thermometer with 1xPt100-temperature probe integrated in stainless steel tube. Measuring unit is according DIN IEC 751 welded-in and not exchangeable.
