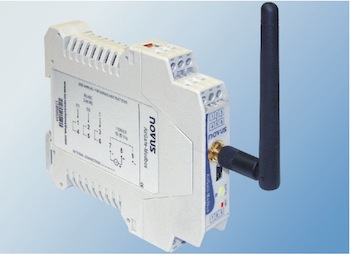

Novus Automation - AirGate

AirGate-Modbus is a wireless multifunctional gateway that allows the transparent and each insertion of wireless branches into existing wired RS485 networks.

Call 800-370-0439 for pricing
Part Number
  • 999-729-001
Manufactured
Availability
  • Call for availability

Features

  • Allows 4 operating modes, RS485-Master, RS485-Slave, USB-Master and Multi-Master
  • RP SMA femal connector (plug)
  • Atenna gain 2 dBi
  • Two RS485 connectors for Modbus RTU interface
  • USB Device (mini-B)
  • Status indication LEDs
AirGate-Modbus is a wireless multifunctional gateway that allows the transparent and each insertion of wireless branches into existing wired RS485 networks. The AirGate-Modbus has four operation modes, Modbus Master, muliipleer, USB-RS485 converter and simple wireless RS485 extension. A proprietary protocol based on IEEE 802.15.4 facilities operation in Star mode, allowing the connection of several wireless segments to an existing Modbus RS485 network.
