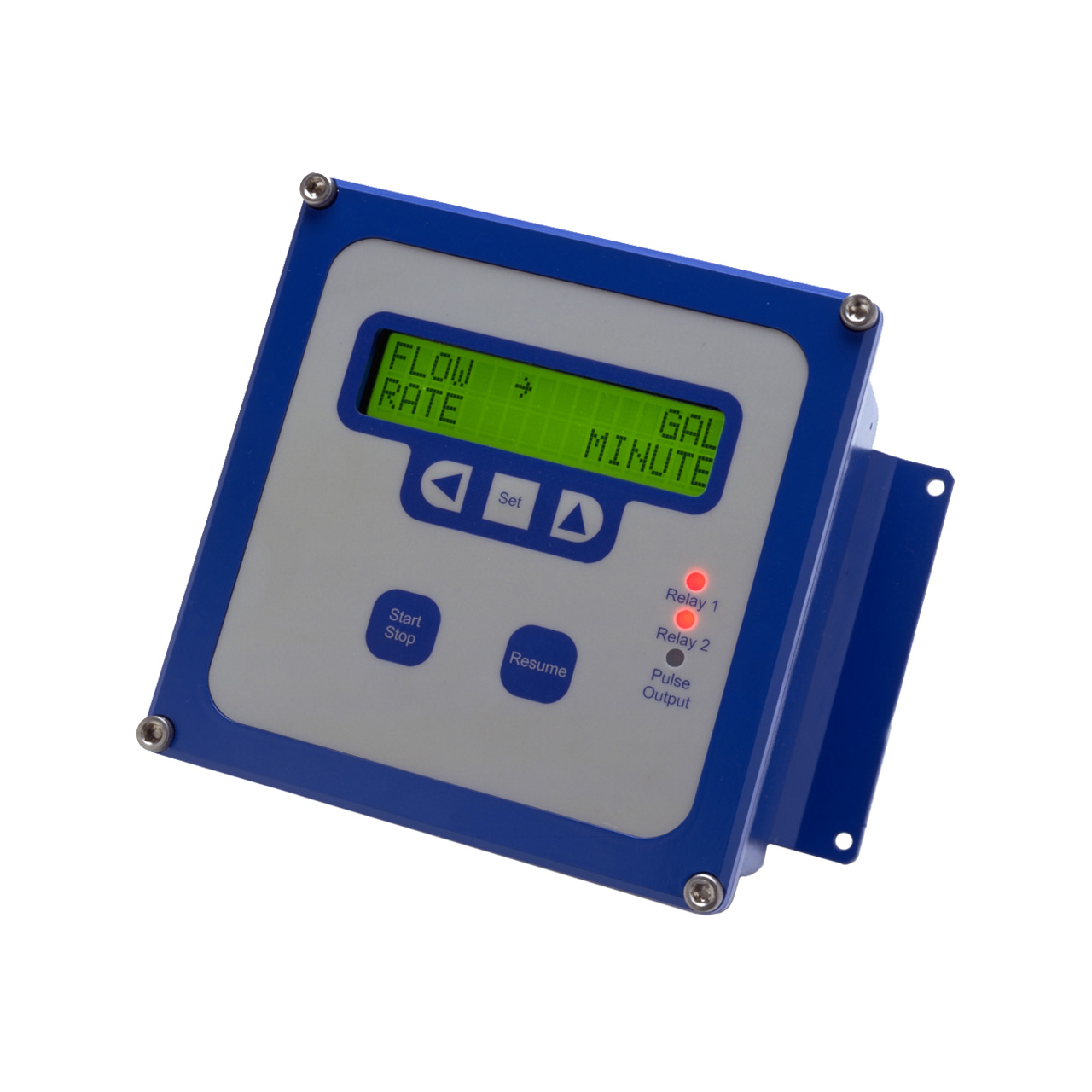

SeaMetrics - FT 520 Batch Controller
The FT500-Series is a batching flow processor with additional output controls. It is designed for use with Seametrics flow meters and flow sensors, as well as other manufacturer’s products which have frequency output proportional to flow.
Overview
Features
- Large backlit alphanumeric display
- Built-in 4-20 mA analog output
- User-scaled pulse output for chemical metering pumps or telemetry
- Two relay outputs for staged shutoff (batching) or dual setpoints (alarm option)
- Rugged cast aluminum housing
- Wall or panel mounting
- Applications
- Cosmetics Manufacturing
- Water Treatment System Maintenance
- Water Leakage Detection
- Precision Refill of Cooling Towers & Tanks
Description
The FT500-Series is a batching flow processor with additional output controls. It is designed for use with Seametrics flow meters and flow sensors, as well as other manufacturer's products which have frequency output proportional to flow. In addition to batch functions, the FT500- Series indicates flow rate, and other data in large 3/8" (9.66 mm) digits on an easily-read, backlit display. Units of measure are user selectable, and range from milliliters per second to millions of gallons per day. The unit can be 110 Vac powered with a standard 3-wire cord (included), 220 Vac powered (optional), or DC powered through an internal terminal strip.
