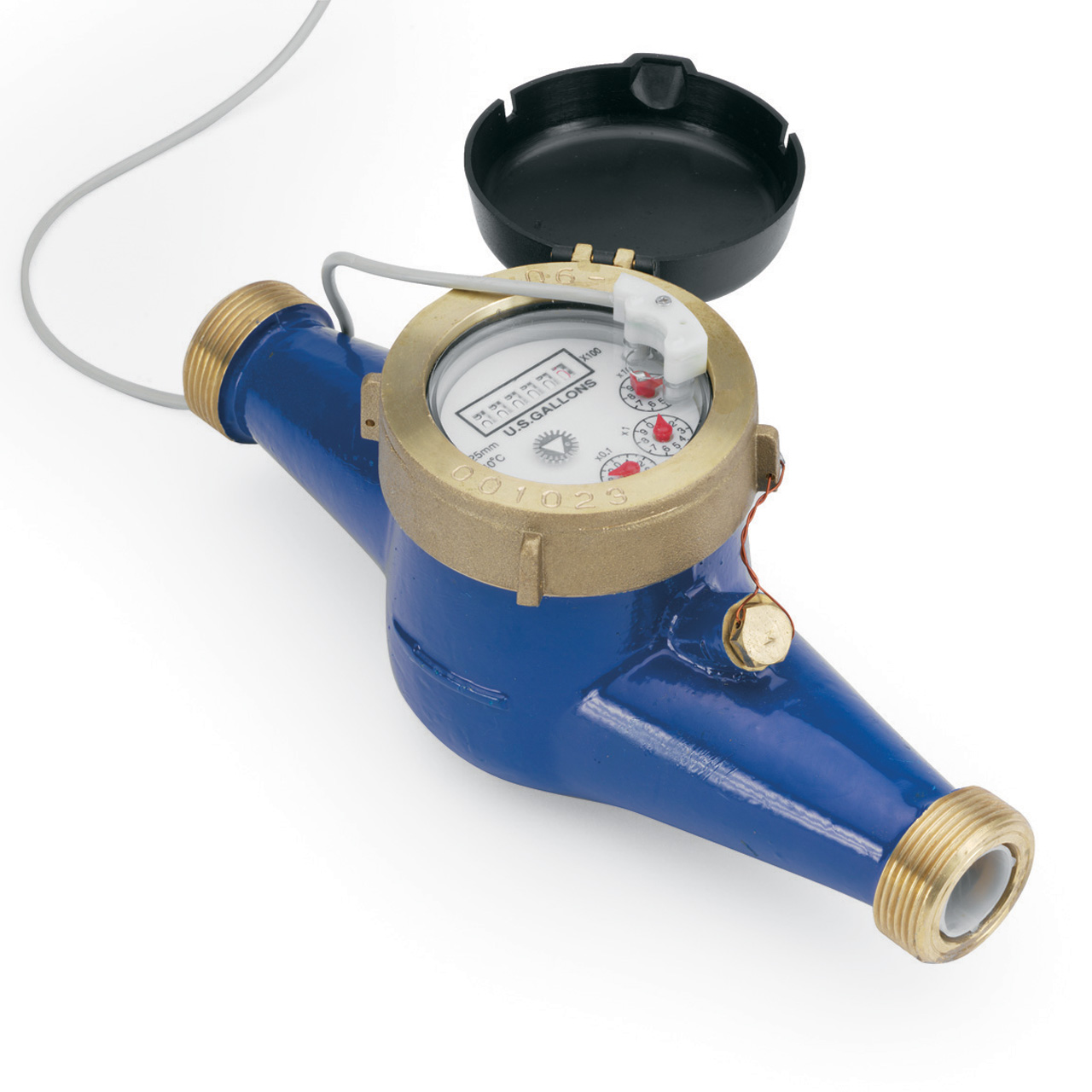

SeaMetrics - Multi Jet Meter - MJ Series Pulse Meters

MJ-Series meters use the multi-jet principle, which has been an internationally-accepted standard for many years. This type of meter is known for its wide range, simplicity, and accuracy in low-quality water. Seametrics offers cold or hot water models.

Call 800-370-0439 for pricing
Part Number
  • 999-637-008
Manufactured
Availability
  • Call for availability

Features

  • Designed for metering pump pacing or water treatment control
  • Hot or cold water models
  • Rugged epoxy-coated bronze bodies with union ends
  • Mechanical register
  • Reed switch (MJR) or Hall-effect (MJE) output
  • 100:1 turndown
  • Wide range of field-changeable pulse rates
  • True dry-top construction
  • Applications
    • Cooling Tower Chemical Control
    • Industrial Water Treatment
    • Deduct Metering
    • Pump Pacing
MJ-Series meters use the multi-jet principle, which has been an internationally-accepted standard for many years. This type of meter is known for its wide range, simplicity, and accuracy in low-quality water. Seametrics offers cold or hot water models. The impeller is centered in a ring of jets, with inlet jets on one level and outlet jets on another. A gear train drives the register totalizer dials. For pulse output, one of the pointers is replaced by a magnet, which is detected by an encapsulated sensor attached to the outside of the lens. Pulse rate is determined by the dial on which the magnet is placed, and by the number of sensors (single or double).
