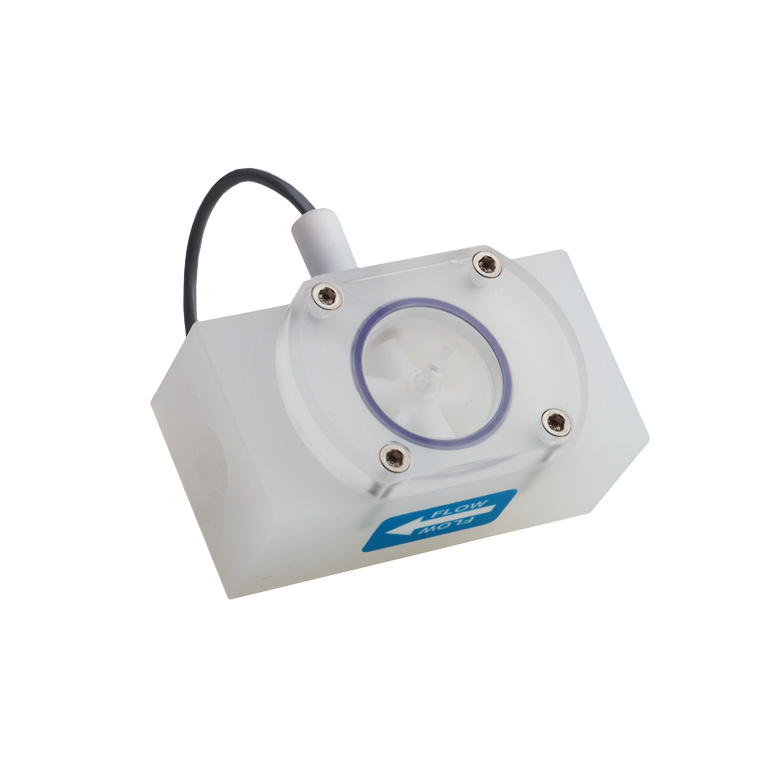

SeaMetrics - Single Jet Meter - SPX Low Flow Mechanical Meter

These versatile impeller flowmeters are available in 3/8”, 1/2”, 3/4”, and 1” nominal pipe sizes with female NPT threads. They employ jewel bearings to allow for very low minimum flow rates and superior life.

Call 800-370-0439 for pricing
Part Number
  • 999-637-011
Manufactured
Availability
  • Call for availability

Features

  • Low flow, chemical resistant flow meter in sizes 3/8″ to 1″
  • Versatile square-wave signal connects to PLC's, counters, and Seametrics controls
  • Only one moving part
  • Sight flow indication
  • Replaceable non-wetted solid-state pickup
  • Wide flow range
  • Applications
    • Low Flow Monitoring
    • Chemical Batching
    • Proportional Chemical Injection
    • Fertilizer Injection
These versatile impeller flowmeters are available in 3/8", 1/2", 3/4", and 1" nominal pipe sizes with female NPT threads. They employ jewel bearings to allow for very low minimum flow rates and superior life. The SPX, with a body of polypropylene, is an economical choice for metering water or low corrosion fluids. The lens cover is available in a choice of materials: acrylic for visual flow indication of low-corrosion fluids; polypropylene when more corrosion resistance is needed. The standard rotor assembly is Kynar® with tungsten carbide shaft. The O-ring is EPDM.
