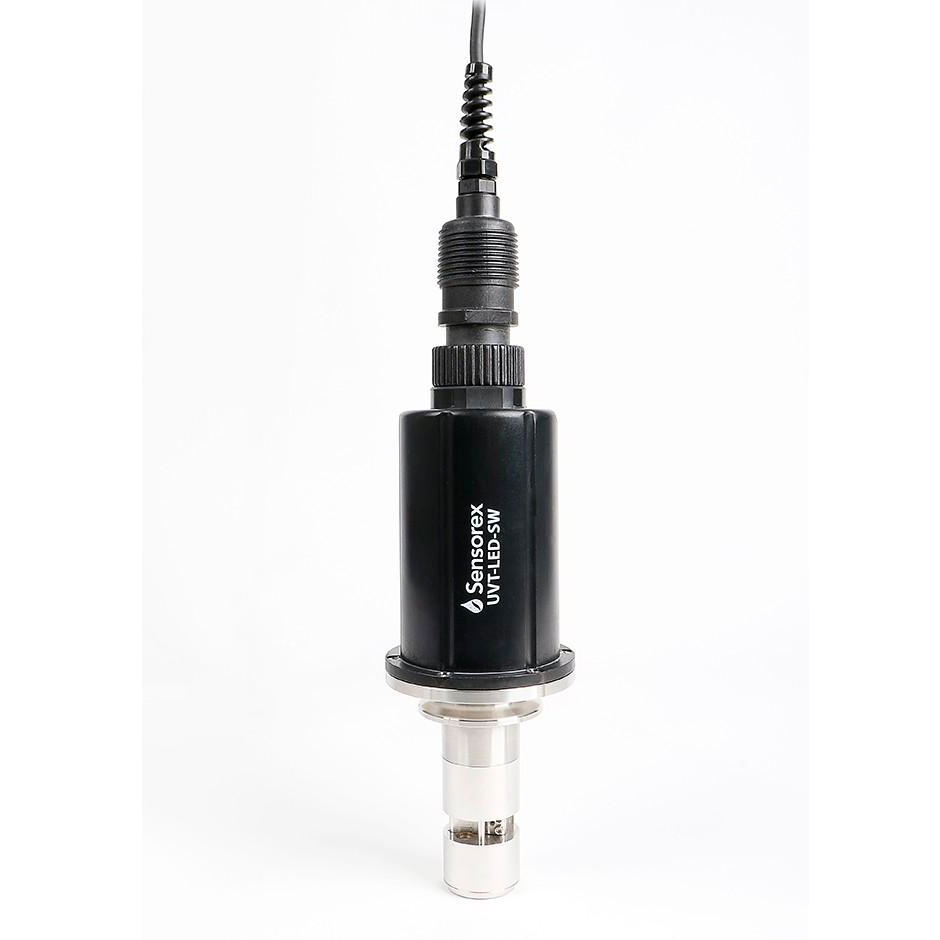

Sensorex - UVT-LED-SW Submersible UV Transmittance Monitor
The UVT-LED-SW Submersible UV Transmittance Sensor provides reliable UVT testing for UV disinfection optimization.
Overview
Features
- Measurement Technique: UV absorption method (single beam technique), reagent-free
- Wavelength: 254nm
- Measurement Path Length: 1cm
- Output: 4-20 mA
- Power Requirement: 24V DC
- Accuracy: 1.0% T
- Resolution: 0.1% T
- Measurement Range: 10% – 100% T
- Measurement Interval: 60 seconds
- Sample Flow Rate: N/A
- Inspection Interval: 3 months
- User Maintenance: 1 hour / month, typical
- IP Ingress Rating: IP68
- Warranty: 2 Year Limited Warranty
- Dimensions: 9.40” H × 3.00” Dia
- Weight: 1.74 lbs (0.79 kg)
Description
The UVT-LED-SW Submersible UV Transmittance Sensor provides reliable UVT testing for UV disinfection optimization. Designed for continuous monitoring of open channel wastewater UV disinfection, the UVT-LED-SW features high performance LED technology for up to 5x longer lifetime. Our patented automatic cleaning and calibration system reduces maintenance, with no expensive annual maintenance contracts required. Available with several installation kits (see "What's Included" below) designed for first time installs or retrofits of existing UV disinfection monitoring systems.
