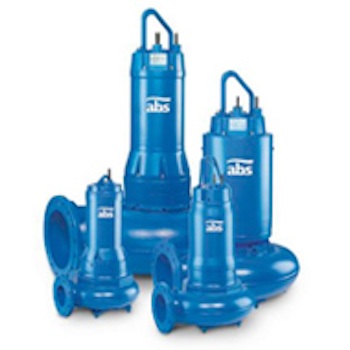

ABS Pump - AFP ME Submersible Sewage Pump

The new AFP-ME is the core product range for sewage and wastewater applications, offering reliable sewage pumps from 9 - 110 kW (50 Hz) and 125 kW (60 Hz).

Call 800-370-0439 for pricing
Part Number
  • 999-396-023
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Construction:
  • The watertight fully flood-proof motor and the pump section form a compact and robust unit
  • Water pressure sealed connection chamber, with two-stage cable entry, protected against excessive cable tension and bending
  • Bimetallic thermal sensors in the stator which open at 140 °C (284 °F)
  • Rotor and rotor shaft dynamically balanced, upper and lower bearings lubricated-for-life, maintenance-free
  • Clog and maintenance free internal closed looped cooling system. Cooling medium: Glycol - water mixture
  • Double shaft sealing
  • Motor:
  • Water pressure sealed high efficiency motors, (3-phase, squirrel cage induction motors) with efficiency class II, from 17 to 280 kW (23 to 375 hp) and, depending on hydraulic requirements as 4- to 12-pole versions
  • Voltage:
  • 460 V3~, 60 Hz (other voltages on request)
  • Insulation class:
  • H (motor winding protected by temperature sensor 140 °C) Protection type: IP68
  • Start-up:
  • direct on line (DOL), soft starter or star-delta
  • Applications
    • Sewage
    • Wastewater
The new AFP-ME is the core product range for sewage and wastewater applications, offering reliable sewage pumps from 9 - 110 kW (50 Hz) and 125 kW (60 Hz). The AFP-ME supplies blockage-free pumping and superior reliability, along with the highest motor efficiency in the submersible pump industry.
