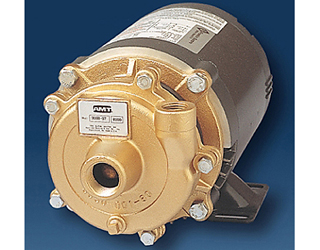

AMT - Straight Pump
This line of AMT Straight Centrifugal pumps is designed for continuous-duty low pressure OEM, Industrial/Commercial and General Service applications including circulation, chemical processing, liquid transfer and cooling.
Overview
Features
- Available in : 300 Series Investment Cast Stainless Steel, Cast Bronze and Cast Iron with Stainless Steel Impeller Construction
- Viton® Mechanical Seal and O-Ring with Stainless Steel and Bronze Models
- Buna-N Mechanical Seal and O-Ring with Cast Iron Models
- Optional Silicon Carbide Mechanical Seals Available
- Discharge Port Rotates in 90 degree Increments
- Maximum Working Pressure 75 PSI
- Maximum Temperature 200 degrees F
- Maximum Flow 90 GPM
- Maximum Head 65 feet (28 PSI)
- Self-cleaning, Semi-open Impellers
- Available with Open Drip Proof (ODP) or Totally Enclosed Fan Cooled (TEFC) 56J Motors
- 1/3 HP to 2 HP Single and Three Phase, 3450 RPM Motors
Description
This line of AMT Straight Centrifugal pumps is designed for continuous-duty low pressure OEM, Industrial/Commercial and General Service applications including circulation, chemical processing, liquid transfer and cooling.
