Walchem - Motorized Ball Valves

Motorized blowdown valves are opened and closed by your Walchem boiler controller to maintain your conductivity set point.

Call 800-370-0439 for pricing
Part Number
  • 999-568-007
Manufactured
Availability
  • Call for availability

Features

  • Part Number: 102448
  • Pipe Size:  ½”
  • Voltage: 120 Vac
  • Current At Startup:  2.3 Amps
  • Ambient Temperature:  0 To 150of
  • Fluid Temperature:  400 Of
  • Max Pressure:  250 Psi
  • Key Dimensions:  6.6” X 5.9” X 8”
  • Materials:  Carbon Steel, Polyfill, TFE-Coated 316SS
  • Part Number:  102449
  • Pipe Size:  ¾”
  • Voltage: ---
  • Current At Startup:  ---
  • Ambient Temperature:  0 To 150of
  • Fluid Temperature:  400 Of
  • Max Pressure:  250 PSI
  • Key Dimensions:  6.6” X 5.9” X 8”
  • Materials:  Carbon Steel, Polyfill, TFE-Coated 316SS
  • Part Number:  102450
  • Pipe Size:  1”
  • Voltage: ---
  • Current At Startup:  ---
  • Ambient Temperature:  0 To 150of
  • Fluid Temperature:  400 Of
  • Max Pressure:  250 PSI
  • Key Dimensions:  6.6” X 5.9” X 8”
  • Materials:  Carbon Steel, Polyfill, TFE-Coated 316SS

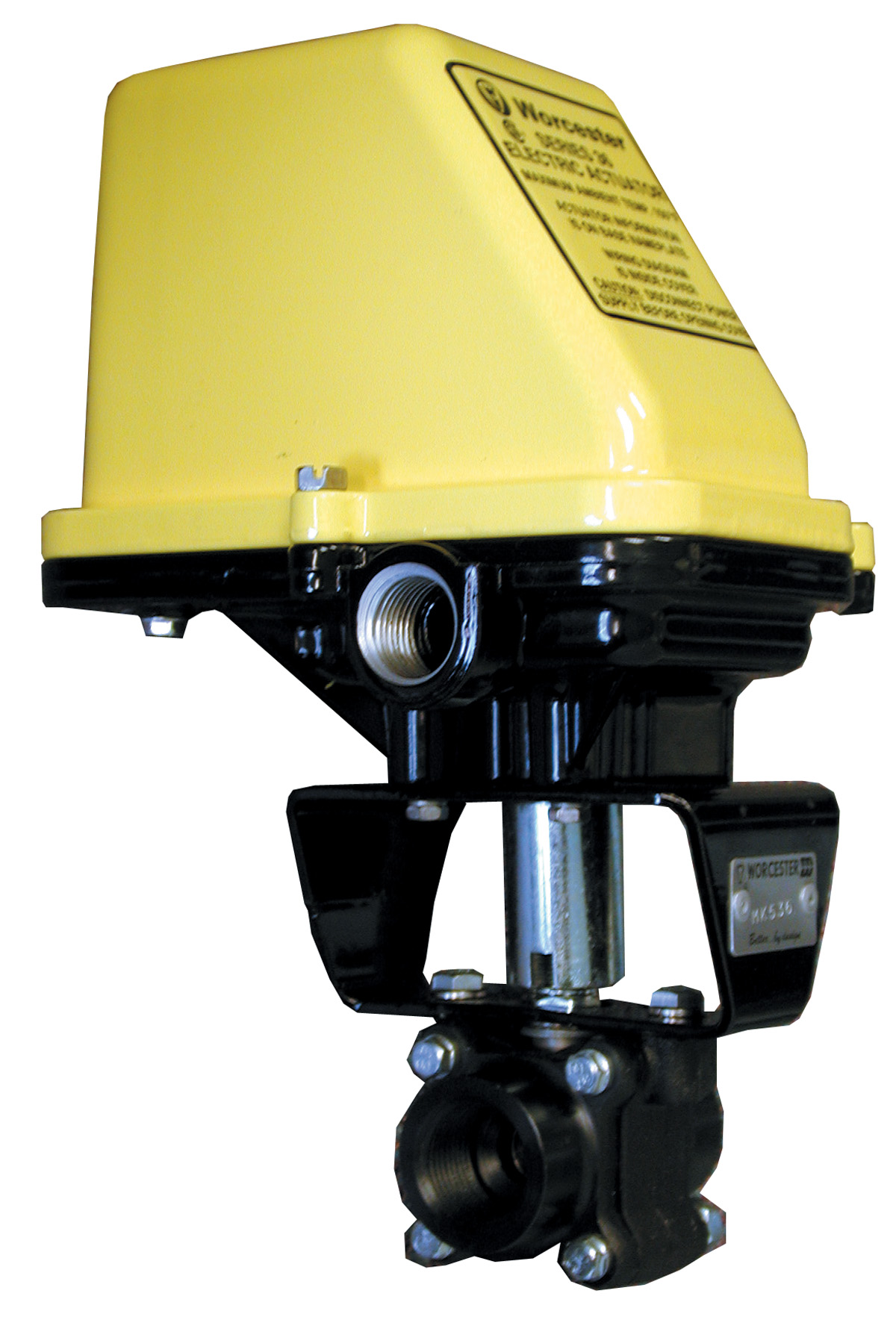

Motorized blowdown valves are opened and closed by your Walchem boiler controller to maintain your conductivity set point. The motorized ball valve delivers a torque of 150 in-lbs using a non-reversing motor, opening the valve in 5 seconds and minimizing pressure hammer. The motor is protected in a NEMA 4X enclosure and features an integral thermal overload protector with automatic reset. Repair kits are available as well.
