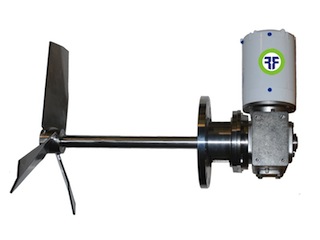

Fusion - Flow Series Right Angle Mixer

Features

• Heavy duty, large-scale tank mixers for batch processes or agitation of low or high viscosity materials in storage, holding, or reaction tanks.
• Mixer-duty electric motors are available in a variety of sizes, phases, and voltages chosen based on your need. Other options include washdown duty, inverter duty, DC electric, and explosion proof motors. Air motors are also available.
• Many right angle gearbox options are available that require less space in restricted areas:
• Helical-bevel gearboxes with double or triple reduction gear arrangements provide quiet operation and extended life. Hundreds of gear ratios are available.
• Worm drive gearboxes offering single or double reduction worm gear arrangements allow high shock loading and economical design. Choose from 13 gear ratios to match process requirements.
• Minimum of 1.5 mechanical service factor on all gearing and bearings.
• Virtual drywells and heavy-duty output bearings are typically used on large units for reduced vibration and to allow for longer shaft lengths (available with Helical-Bevel gearboxes). Rigid in-tank couplings used as required.
• Closed Tank configurations are available with vapor seals, stuffing box glands (up to 150 PSI) and single or double mechanical seals (300+ psi). In-tank shutoff mechanism allows seal changes on side entry mixers without emptying the tank.
• Stainless Steel components, Steel-It™ USDA–compliant paint, polished shafts and various shaft coatings are available for sanitary applications and chemical resistance.
• Various impeller styles and mounting options such as ANSI flange mount, TriClamp mount, beam mount are available for your process.
• Applications
  • Industrial Mixing & Blending
  • Large Scale Sanitary and BioPharm
  • Reaction Tanks
  • Low or High Viscosity Blending
  • Large Scale Waste Treatment
