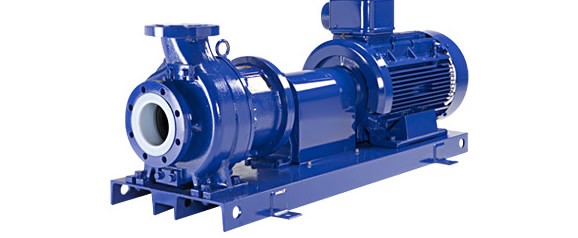

Iwaki - MDW Series

Features

• High discharge capacity, High head and high efficiency - The heavy-duty MDW is capable of a maximum discharge capacity of 5,000 L/min and max. discharge head of 98m, enabling applications in previously unexplored areas with a wide range of liquid specific gravities.
• Highly chemically resistant - Fluoroplastic and fine ceramic wetted parts offer high resistance to virtually every industrial chemical, regardless of concentration. ISO compliant - The MDW is dimensionally compliant with the international standard (ISO2858, 3661) and is interchangeable with conventional sealed centrifugal pumps.
• Robust structure - Use of the high strength ductile cast iron external armour is mandatory for heavy duty chemical process applications.
• High casing pressure resistance is achieved with a unique rear casing design preventing stress concentration and incorporating a triple-layer structure (PAT). A special metal shaft is used on the MDW to withstand high radial forces and allow continuous extended operation even under harsh service conditions.
• Back pullout system - The back pullout system allows easy maintenance and inspection without removing pipework. Integrated components and a sealed rear casing support structure enable motor removal safely without chemical leakage.
