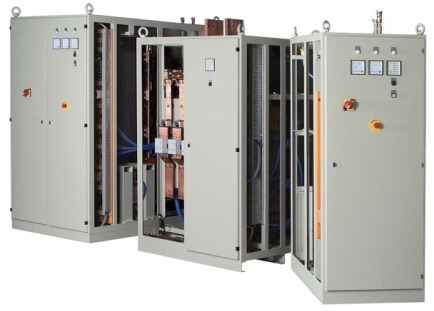

American Plating Power - SCR Water Cooled Rectifier - MTW Series

The powerful MTW Series models are SCR-based rectifiers, designed for the harshest environments.

Call 800-370-0439 for pricing
Part Number
  • 999-1488-015
Manufactured
Availability
  • Call for availability

Features

  • Optional (Depending on Process):
  • change of polarity possible (wear-free)
  • field bus systems
  • smoothing inductance (i.e. chrome, brightening, alloys)
  • Standard Technical Data:
  • Mains Voltage:  3 x 208VAC – 600VAC 50/60 Hz (other voltages available upon request)
  • Output Current:  >1000A – 100kA
  • Output Voltage:  > 6V – 600V
  • Adjustment:  Stepless from 0 - 100 %
  • Ripple:  Approx. 5% at full load (Option: ripple filter ≤ 5 % in a defined range)
  • Duty Factor:  100%
  • Ambient Temperature: 95°F (Option: > 95°F)
  • Water Entry Temperature:  Approx. 60°F up to 85°F
  • Protection Grade:  NEMA 12 - NEMA 4
The powerful MTW Series models are SCR-based rectifiers, designed for the harshest environments. MTW Series Rectifiers combine the compact design and easy access advantages of a cabinet construction with the almost completely sealed enclosure of a tank design. Due to the higher cooling efficiency of water in comparison to air, MTW Power Supplies are even more compact than air-cooled SCR systems.
