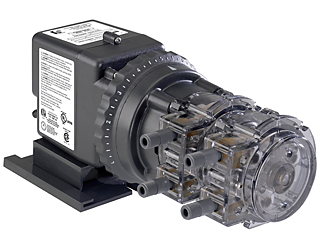

Stenner - 170 Classic Series Pump
The Stenner 170 Classic Series peristaltic pump is a double head adjustable output metering pump.
Overview
Features
- Outputs of 0.5 to 34.0 gpd up to 100 psi
- Maximum discharge pressure of 0.5 to 170.0 gpd up to 25 psi
- Voltages of 120v 60Hz, 220V 60Hz, 230v 50Hz, 250v 50Hz
- Motor, shaded pole, approximate 44 rpm, 1/30 HP
- Suction lift of 25 feet
- Maximum operating temperature of 125 degrees F
Description
The Stenner 170 Classic Series peristaltic pump is a double head adjustable output metering pump built with four detachable components: the motor, feed rate control and two pump heads. The pump has a 3-point roller design in the pump head, which acts as a check valve to prevent back flow, siphoning, overdosing and loss of prime.
