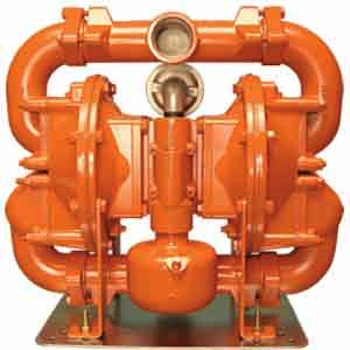

Wilden - T810 2" Advanced Metal Pump
Wilden's revolutionary Advanced™ Series pumps were specifically designed for maximum performance and efficiency.
Overview
Features
- Flow Rate to:
- 628 LPM (166 GPM)
- Max Pressure:
- 8.6 BAR (125 PSIG)
- Maximum Diameter Solids:
- 51 mm (2")
- Wetted Housings - (Water Chambers And Manifolds) Material (Ship Weight):
- Aluminum (40 kg / 89 lbs)
- Ductile Iron (60 kg / 133 lbs)
- Non-Wetted Housings – Description / Material:
- Center Block / Aluminum
- Air Chambers / Aluminum
- Air Valve / Brass with oil bottle
- Maximum Suction Lift Capability:
- 7.6 m (25.0') Dry
- 9.3 m (30.6') Wet
- Elastomer Options – Material / Temperature Limits:
- Buna-N® / -12.2 (+10) to +82.2 (+180) °C (F°)
- Neoprene / -17.8 (+0) to +93.3 (+200) °C (F°)
Description
Wilden's revolutionary Advanced™ Series pumps were specifically designed for maximum performance and efficiency. The bolted configuration of these pumps ensures total product containment while the redesigned liquid path reduces internal friction to maximize output and efficiency. A variety of elastomer options, including Teflon® PTFE, are available to meet abrasion, temperature, and chemical compatibility concerns. The Advanced™ Series metal pumps are offered in die cast aluminum, stainless steel and alloy C. A variety of options such as ANSI and DIN flanges, NPT/BSPT threads, and specialized air distribution systems are available to meet your specific application requirements.
