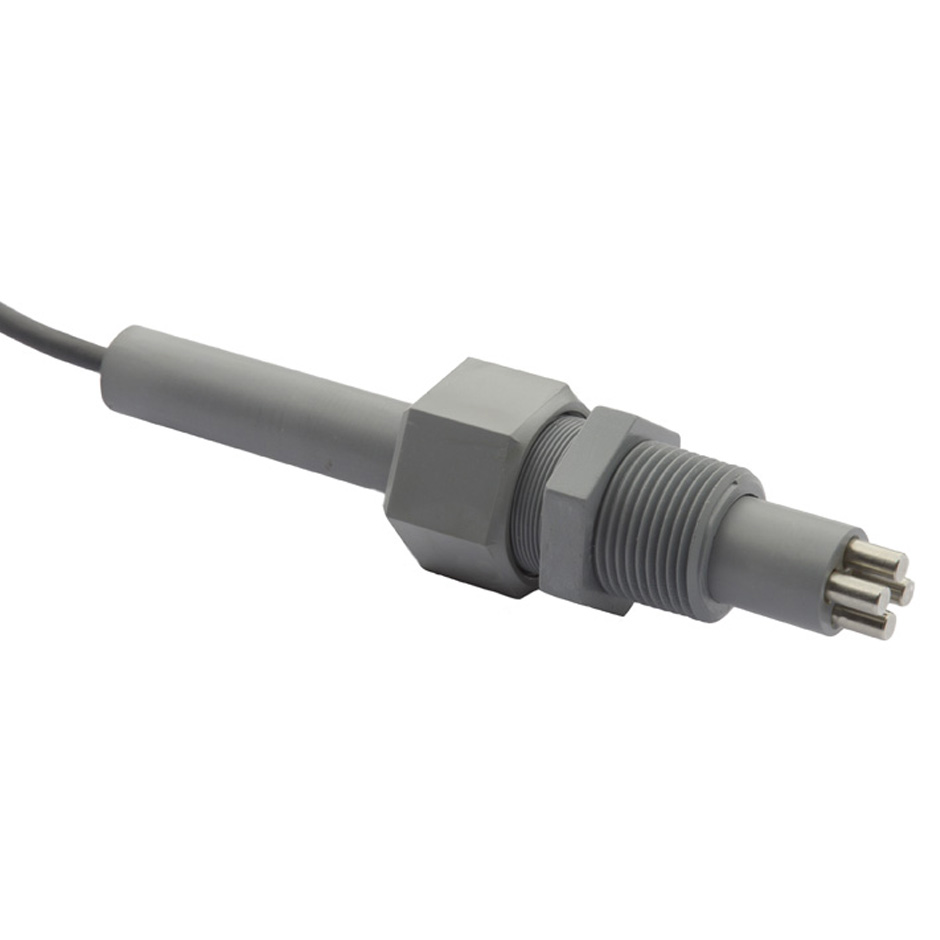

Water Analytics - 316 Stainless Steel Conductivity Sensors - ASM1P1 - AM Series

The ASM conductivity probes are general purpose sensors that combine durability, performance and low cost. They will work in any application that is less than 95 °C and that does not need the strength of stainless steel. Five cell constants from 0.001 to .

Call 800-370-0439 for pricing
Part Number
  • 999-146-010
Manufactured
Availability
  • Call for availability

Features

  • CPVC shell
  • 316 SS or Graphite Electrodes
  • PT1000RTD Automatic Temperature Compensation Device
  • Adjustable Insertion Length
  • AM-HTC-AS Ball Valve “Hot Tap” Hardware Available
  • Five Cell Constants to choose from: 0.01, 0.1, 1, 10 and 50
  • Choice of four temperature devices for automatic compensation
  • Applications
    • Cooling towers
    • High purity water applications
    • Pharmaceutical Applications
    • Reverse osmosis systems
    • Food and Beverage
    • Aquaculture
    • Agriculture
The ASM conductivity probes are general purpose sensors that combine durability, performance and low cost. They will work in any application that is less than 95 °C and that does not need the strength of stainless steel. Five cell constants from 0.001 to 50 cover everything between pure water and brine. Probes come with a choice of 316 SS or graphite electrodes. All include a safety stop shoulder and a choice of temperature elements for automatic temperature compensation (1000 ΩRTD, 100 ΩRTD, 300 ΩNTC or 3kΩ NTC). A special compression fitting allows adjustable insertion length in 3/4 inch NPT piping or in the side of a tank. Submersion mounting requires simply reversing the direction of the compression fitting. Mounting hardware include a CPVC pipe and an adjustable bracket for hanging on the rim of the tank. The AM-HTC-AS hot tap with longer body sensor (HT version) permit removal of the cell from process piping or from tanks without shutting down the system.
