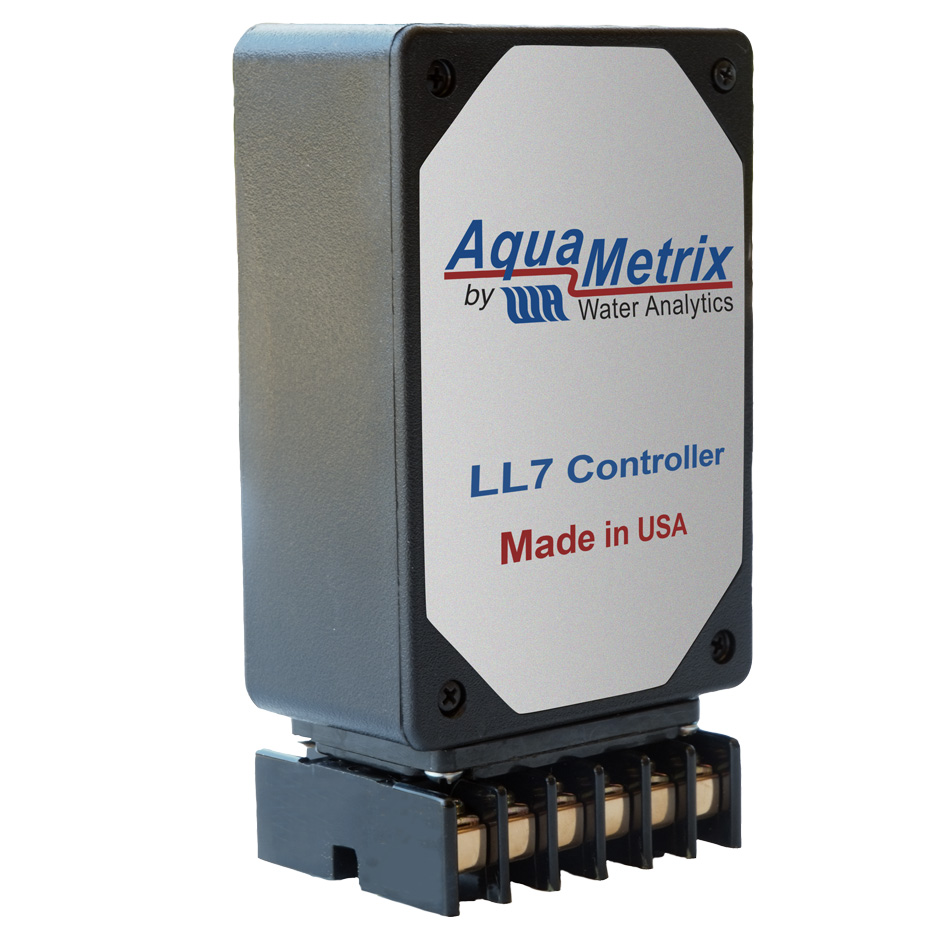

Water Analytics - Liquid Level Controller - AM-LL

AquaMetrix manufactures four models of liquid level controllers to satisfy most industrial applications. These controllers operate on the principle of electrolytic conductivity in liquids. A built-in sensitivity adjustment permits field tuning the instrum.

Call 800-370-0439 for pricing
Part Number
  • 999-146-017
Manufactured
Availability
  • Call for availability

Features

  • Ideal for applications where the controller is mounted remotely, up to 300’ from the electrodes
  • Built-in sensitivity adjustment for foam or liquid applications
  • Safe Low voltage at the electrodes
  • Custom electrode length and material available
  • Model LL7H for use with low conductivity liquids
  • AC based conductivity
  • SPDF (single pole double throw) relay
  • Current and voltage limited
  • NEMA1 enclosure
  • Applications
    • Chemical Mixing
    • Filtration Systems
    • Irrigation
    • Neutralizaton Systems
    • Process Cooling Systems
    • Process Flow Control
    • Waste Water Flow Accumulation
    • Water Treatment Systems
AquaMetrix manufactures four models of liquid level controllers to satisfy most industrial applications. These controllers operate on the principle of electrolytic conductivity in liquids. A built-in sensitivity adjustment permits field tuning the instrument so that one model is suitable for most conductivity liquids. For instance the LL4 or LL7 may be adjusted to respond to either foam or liquid. Some controllers may be as far as 300 meters from the electrodes, and connections are made with unshielded cable. The AquaMetrix design limits the voltage at the electrodes to 18 volts, and also limits the current even if electrodes are shorted. Some competitive controllers may require as much as 500 volts across the electrodes. All LL Series controllers are suitable for single level service or differential service. Single level service allows for high or low alarm, while differential service provides a pump up/pump down region between two electrode heights. All units are housed in a NEMA 1 black ABS plastic enclosure which plugs in to a standard 12-pin relay socket with durable screw terminals. The pins and terminals are nickel-plated brass. MODEL LL4: MODEL LL7 and LL7H: MODEL LL3:
