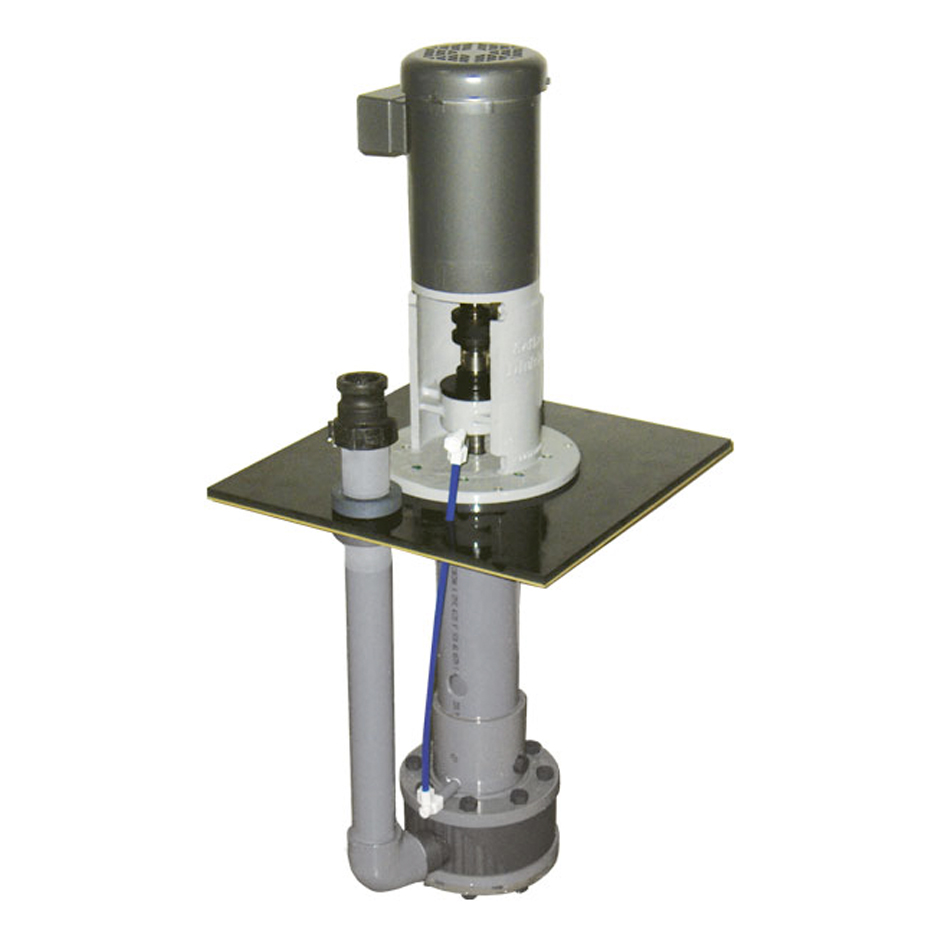

Sethco - Thermoplastic Chemical Sump Pump - UD/UV Series

The Sethco Thermoplastic Chemical Sump Pump UD/UV Series heavy duty industrial sump pumps are ideally suited, structurally and hydraulically, for heavy-duty service. They provide outstanding mechanical strength at elevated temperatures and excellent .

Call 800-370-0439 for pricing
Part Number
  • 999-512-023
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Capacities to 220 GPM (50 m3/hr.)
  • Heads to 135 feet (41 m)
  • Standard pump lengths up to 10 feet (3 m)
  • Motors to 15 hp (11.2 kW)
  • CPVC/PVC materials of construction (up to 140ºF / 60ºC)
  • 316SS, Carp-20, Titanium or Hastelloy-C pump shafts
  • Maximum 24" (610 mm) bearing span
  • Mounts to standard NEMA or IEC frame motors
  • Bearing pedestal includes an oversized double sealed ball bearing
The Sethco Thermoplastic Chemical Sump Pump UD/UV Series heavy duty industrial sump pumps are ideally suited, structurally and hydraulically, for heavy-duty service. They provide outstanding mechanical strength at elevated temperatures and excellent chemical resistance to concentrated acids and alkalis.
