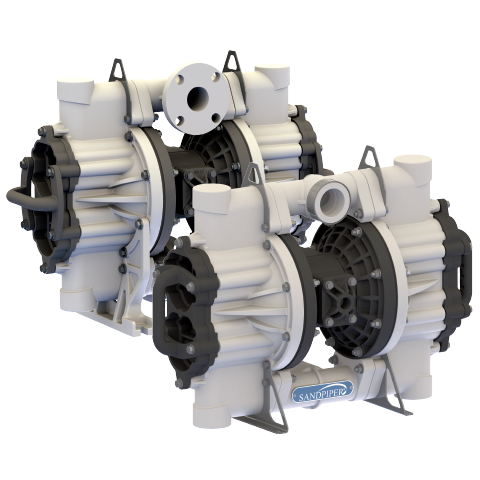

Sandpiper - Signature Series - Heavy Duty Flap Pump - HD20F Non-Metallic

The Sandpiper HD20F pump is available with either reinforced threaded or flanged connection. The robust, yet lightweight design allows for ease of maintenance and movement, and is ideal for handling solids and corrosive fluid.

Call 800-370-0439 for pricing
Part Number
  • 999-592-005
Manufactured
Availability
  • Call for availability
Product Specs (2 Files)

Features

  • Port Size
  • 2” NPT (Internal)
  • 2” BSP (Tapered)
  • 2” ANSI
  • 2” DIN Flange

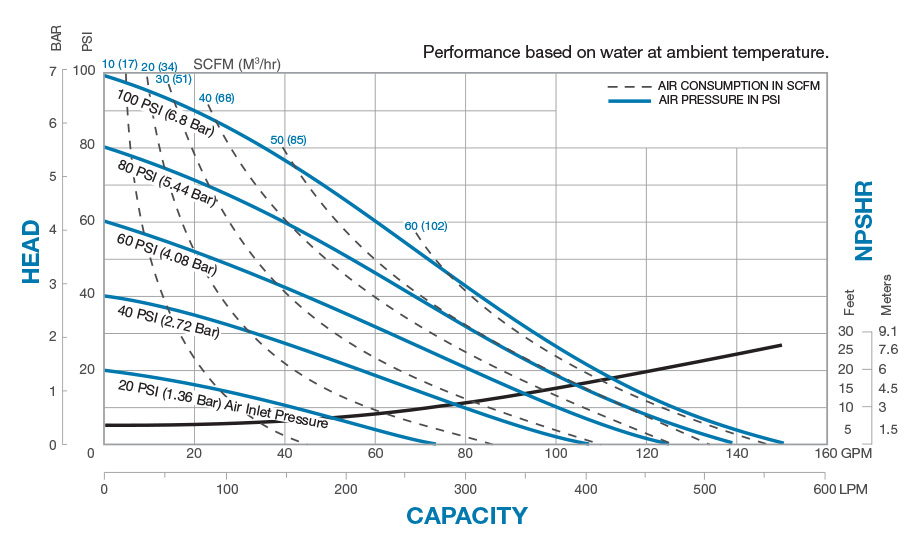

  • Capacity
  • 0 to 150 gpm (567 lpm)
  • Air Distribution Valve
  • No-lube, no-stall design
  • Solids-Handling
  • Up to 1.8" (46 mm)
  • Heads Up To
  • 100 psi or 231 ft. of water (7 bar or 70 meters)
  • Displacement/Stroke
  • .50 gallons (1.9 liters)
  • Max Operating Pressure
  • 100 psi (7 bar)
  • Applications
    • Mine Dewatering
    • Sump
    • Chemical Transfer
The Sandpiper HD20F pump is available with either reinforced threaded or flanged connection. The robust, yet lightweight design allows for ease of maintenance and movement, and is ideal for handling solids and corrosive fluids. This unique pump has been engineered to fully function in any position, includes lifting handles and hanging points, and has durable mounting feet. This is an ideal solution for numerous applications.
