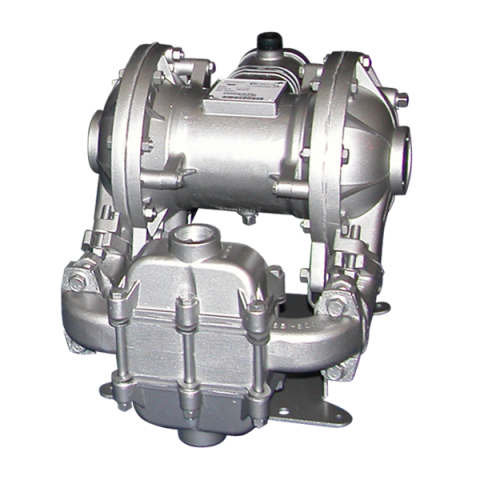

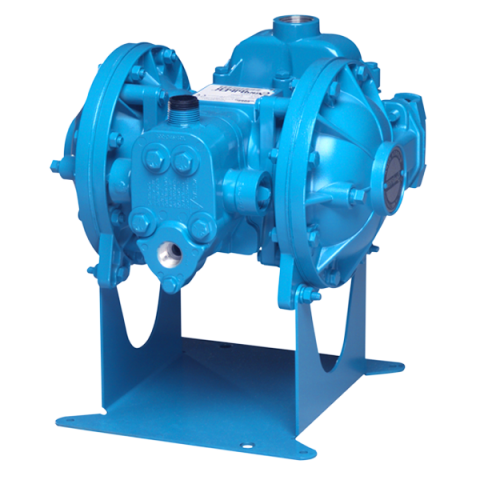

Sandpiper - Signature Series - Heavy Duty Ball Pump - SB1 / SB25 Metallic
The Sandpiper HDB Metallic Pumps are ideal for thin to highly viscous and small solids-laden fluids, while providing excellent suction lift capability and exclusive variable porting options (side, top, bottom and dual).
Overview
Features
- Port Size
- SB1: 1” NPT
- SB25: 1” BSP (Tapered)
- Capacity
- 0 to 42 gpm (159 lpm)
- Air Distribution Valve
- No-lube, no-stall design
- Solids-Handling
- Up to .25" (6.3 mm)
- Heads Up To
- 125 psi or 289 ft. of water (8.6 bar or 88 meters)
- Displacement/Stroke
- .09 gallons (.34 liters)
- Max Operating Pressure
- 125 psi (8.6 bar)
Description
The Sandpiper HDB Metallic Pumps are ideal for thin to highly viscous and small solids-laden fluids, while providing excellent suction lift capability and exclusive variable porting options (side, top, bottom and dual). HDB pumps are thick wall constructed of Sand Casted Aluminum, Cast Iron, Stainless Steel or Alloy C with elastomer, TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves. HDB pumps are enhanced with an extended wear package.
