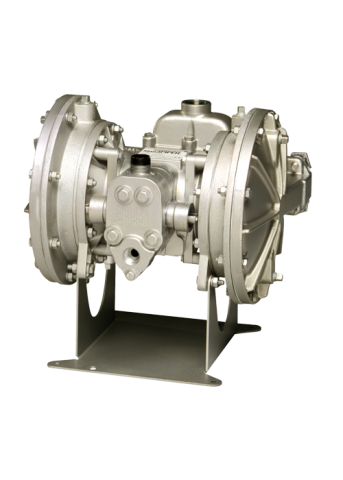

Sandpiper- Signature Series - Containment Duty Ball Pump - ST1 / ST25 Metallic
The Sandpiper Containment Duty Metallic and Non-Metallic Pumps are ideal for highly corrosive and hazardous chemical fluid requirements. All containment duty pumps are exclusively designed with containment chambers, hydraulically balanced/coupled pumping .
Overview
Features
- Port Size
- ST1: 1” NPT (Internal)
- ST25: 1” BSP (Tapered)
- Capacity
- 0 to 42 gpm (159 lpm)
- Air Distribution Valve
- No-lube, no-stall design
- Solids-Handling
- Up to .25" (6.3 mm)
- Heads Up To
- 125 psi or 289 ft. of water (8.6 bar or 88 meters)
- Displacement/Stroke
- .09 gallons (.34 liters)
- Max Operating Pressure
- 125 psi (8.6 bar)
Description
The Sandpiper Containment Duty Metallic and Non-Metallic Pumps are ideal for highly corrosive and hazardous chemical fluid requirements. All containment duty pumps are exclusively designed with containment chambers, hydraulically balanced/coupled pumping diaphragm and driver diaphragm assemblies. All containment chambers are designed to accommodate visual, mechanical and low voltage leak detection devices. CD pumps are constructed of Aluminum, Cast Iron, Stainless Steel, Alloy C, Polypropylene and PVDF with TPE (thermal plastic elastomers), PTFE options in diaphragms and check valves.
