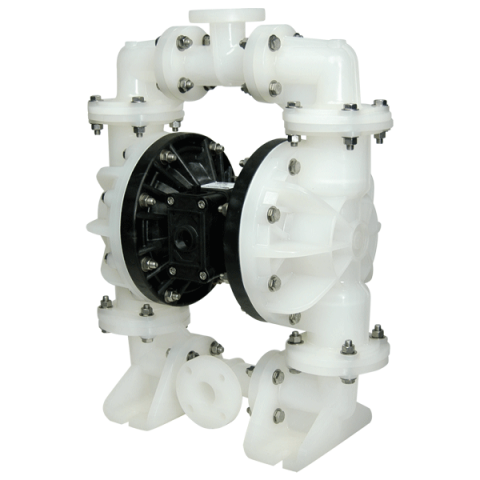

Sandpiper - Signature Series - Containment Duty Ball Pump - S15 Non-Metallic
The Sandpiper Containment Duty Metallic and Non-Metallic Pumps are ideal for highly corrosive and hazardous chemical fluid requirements. All containment duty pumps are exclusively designed with containment chambers, hydraulically balanced/coupled pumping .
Overview
Features
- Port Size
- 1 1/2" ANSI Flange or PN10 40mm DIN Flange
- Capacity
- 0 to 100 gpm (378 lpm)
- Air Distribution Valve
- No-lube, no-stall design
- Solids-Handling
- Up to .47" (12 mm)
- Heads Up To
- 100 psi or 231 ft. of water (7 bar or 70 meters)
- Displacement/Stroke
- .43 gallons (1.63 liters)
- Max Operating Pressure
- 100 psi (7 bar)
Description
The Sandpiper Containment Duty Metallic and Non-Metallic Pumps are ideal for highly corrosive and hazardous chemical fluid requirements. All containment duty pumps are exclusively designed with containment chambers, hydraulically balanced/coupled pumping diaphragm and driver diaphragm assemblies. All containment chambers are designed to accommodate visual, mechanical and low voltage leak detection devices. CD pumps are constructed of Aluminum, Cast Iron, Stainless Steel, Alloy C, Polypropylene and PVDF with TPE (thermal plastic elastomers), PTFE options in diaphragms and check valves.
