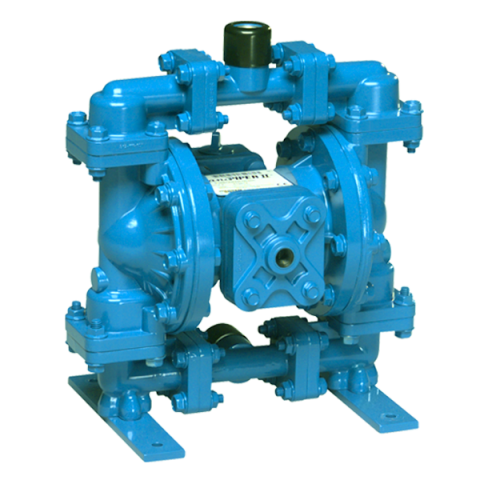

Sandpiper - Standard Duty Ball Pump - S05 Metallic

The Sandpiper Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids.

Call 800-370-0439 for pricing
Part Number
  • 999-592-023
Manufactured
Availability
  • Call for availability

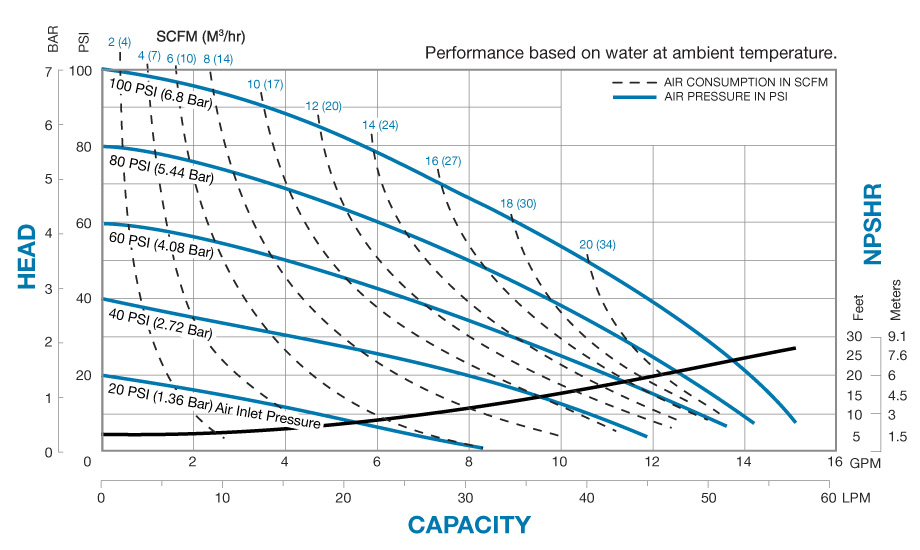

Product Specs

Features

  • Port Size
  • 1/2" NPT (Internal) or 1/2" BSP (Tapered)
  • 1" NPT (External) or 1" BSP (Tapered)
  • 1/2" Raised Face 150# ANSI Flanges - Stainless Steel ONLY
  • Capacity
  • 0 to 15 gpm (56 lpm)
  • Air Distribution Valve
  • No-lube, no-stall design
  • Solids-Handling
  • Up to .125" (3 mm)
  • Heads Up To
  • 125 psi or 298 ft. of water (8.6 bar or 86 meters)
  • Displacement/Stroke
  • .026 gallons (.098 liters)
  • Max Operating Pressure
  • 125 psi (8.6 bar) metallic center & 100 psi (7 bar) non-metallic center
The Sandpiper Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves. PLEASE NOTE:  PRODUCT CHANGE NOTICE FOR THE S05 & G05 EFFECTIVE APRIL 2020 Change Overview: Pumps & Parts Affected: Interchangeability and/or Replacement:
