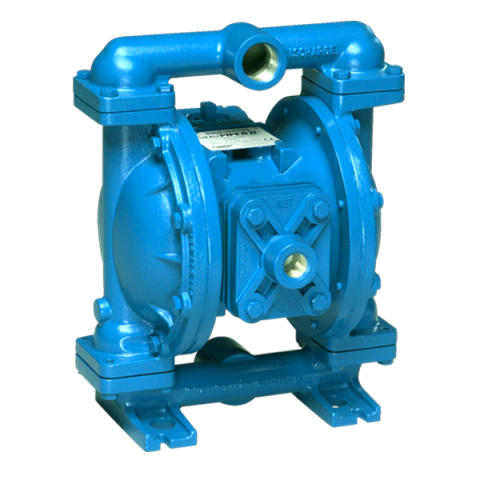

Sandpiper - Standard Duty Ball Pump - S1F Metallic

The Sandpiper Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids.

Call 800-370-0439 for pricing
Part Number
  • 999-592-027
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Port Size
  • 1" NPT (Internal)
  • 1" BSP (Tapered)
  • 1" ANSI 150# Raised Face Flanges
  • Capacity
  • 0 to 45 gpm (170 lpm)
  • Air Distribution Valve
  • No-lube, no-stall design
  • Solids-Handling
  • Up to .25" (6 mm)
  • Heads Up To
  • 125 psi or 289 ft. of water (8.6 bar or 88 meters)
  • Displacement/Stroke
  • 0.11 gallons (0.41 liters)
  • Max Operating Pressure
  • 125 psi (8.6 bar)
The Sandpiper Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.
