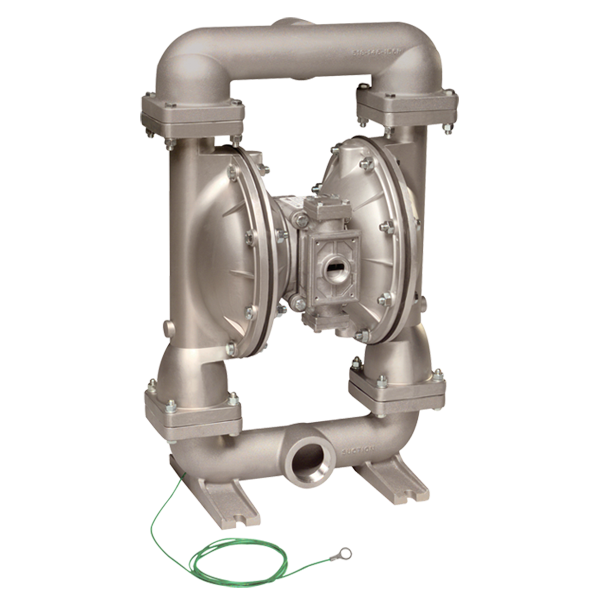

Sandpiper - Special Duty Oil & Gas - G20 Metallic

The Sandpiper Natural Gas Operated Pumps are CSA* (Canadian Standards Association) certified to ANSI LC6 standard for operation using sweet or sour natural gas. The pumps are also compliant with NACE Standard MR0175/ISO15156.

Call 800-370-0439 for pricing
Part Number
  • 999-592-036
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Port Size
  • 2" NPT / BSP
  • Capacity
  • 0 to 150 gpm (567 lpm)
  • Air Distribution Valve
  • No-lube, no-stall design
  • Solids-Handling
  • Up to .25" (6 mm)
  • Heads Up To
  • 100 psi or 231 ft. of water (7 bar or 70 meters)
  • Displacement/Stroke
  • .42 gallons (1.59 liters)
  • Max Operating Pressure
  • 100 psi (7 bar)
The Sandpiper Natural Gas Operated Pumps are CSA* (Canadian Standards Association) certified to ANSI LC6 standard for operation using sweet or sour natural gas. The pumps are also compliant with NACE Standard MR0175/ISO15156.  The gas pump utilizes Aluminum or 316 Stainless Steel wetted construction with Nitrile or Virgin PTFE diaphragms and check balls. The gas valve is constructed of Aluminum with Nitrile or FKM (fluorocarbon) elastomers. Pumps are fully groundable, preventing static discharge. A Stainless Steel gas valve option is available on G15 to G30 pumps for more corrosive applications.
