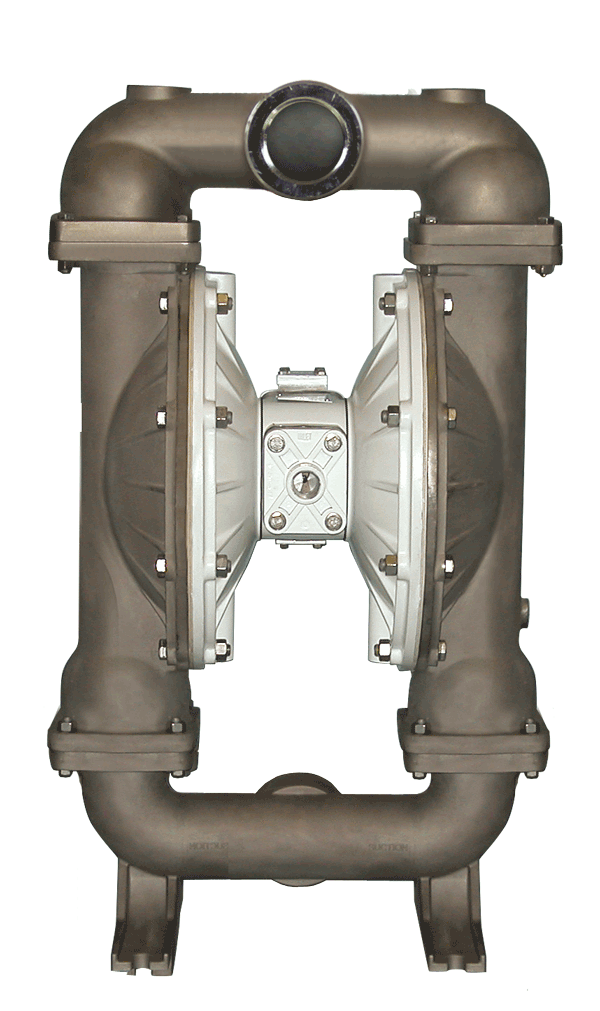

Sandpiper - Special Duty Standard FDA - T30 Metallic

The Sandpiper FDA (Food & Drug Administration) Material Compliant Pumps are ideally suited for a variety of food processing, pharmaceutical and cosmetic industry applications.

Call 800-370-0439 for pricing
Part Number
  • 999-592-052
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Port Size
  • 4" TRI-CLAMP
  • Capacity
  • 0 to 235 gpm (889 lpm)
  • Air Distribution Valve
  • No-lube, no-stall design
  • Solids-Handling
  • Up to .38" (9.65 mm)
  • Heads Up To
  • 125 psi or 289 ft. of water (8.6 bar or 88 meters)
  • Displacement/Stroke
  • .94 gallons (3.56 liters)
  • Max Operating Pressure
  • 125 psi (8.6 bar)
The Sandpiper FDA (Food & Drug Administration) Material Compliant Pumps are ideally suited for a variety of food processing, pharmaceutical and cosmetic industry applications. The pumps are available in 1" through 3" ball check valve designs and a 2" (line size solids handling) flap check valve design. Variable flow capacities across the range are 0–235 gallons per minute. These special duty pumps are constructed of FDA compliant material components of Stainless Steel (wetted castings) and a selection of FDA Santoprene, FDA Nitrile and PTFE diaphragms, check valves and valve seats. Standard non-wetted components are white epoxy coated Aluminum with stainless steel hardware. 1", 1½" and 2" pumps are offered with sanitary clamp fittings and 3" pumps are offered with an ANSI flange.
