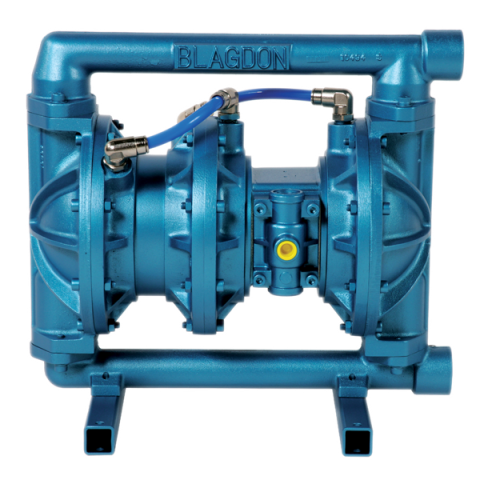

Sandpiper - Special Duty High Pressure - N25 Metallic

The Sandpiper Blagdon N25 and N50 High Pressure Pumps provide enhanced power in applications where pressure is paramount and flow rate is an issue.

Call 800-370-0439 for pricing
Part Number
  • 999-592-061
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Port Size
  • 1" NPT / BSP
  • Capacity
  • 0 to 30 gpm (136 lpm)
  • Air Distribution Valve
  • No-lube, no-stall design
  • Solids-Handling
  • Up to 3/16" (5 mm)
  • Heads Up To
  • 125 psi or 289 ft. of water (8.6 bar or 86 meters)
  • Displacement/Stroke
  • .11 gallons (.5 liters)
  • Max Operating Pressure
  • 232 psi (16 bar)
The Sandpiper Blagdon N25 and N50 High Pressure Pumps provide enhanced power in applications where pressure is paramount and flow rate is an issue. Using two air chambers to double the air per stroke, these pumps achieve discharge pressure up to 238 PSI (16 Bar) with flow rates as high as 30 gallons per minute for N25 and as high as 90 GPM (341 LPM) with N50.
