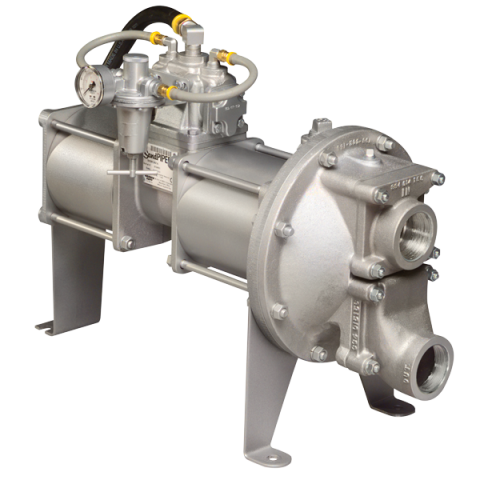

Sandpiper - Special Duty High Pressure - SH2-M Metallic

The Sandpiper Air-Powered Single Diaphragm High Pressure Metallic Pumps deliver discharge pressure twice the inlet pressure, up to 250 PSI (17.2 BAR). Designed for filter press feed and applications requiring higher discharge pressures. Available in Alumi.

Call 800-370-0439 for pricing
Part Number
  • 999-592-064
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Port Size
  • 2" NPT
  • Capacity
  • 0 to 120 gpm (454 lpm)
  • Air Distribution Valve
  • No-lube, no-stall design
  • Solids-Handling
  • Up to 2" (50 mm)
  • Heads Up To
  • 250 psi or 577 ft. of water (17 bar or 176 meters)
  • Displacement/Stroke
  • .3 gallons (1.1 liters)
  • Max Operating Pressure
  • 125 psi (8.6 bar)
The Sandpiper Air-Powered Single Diaphragm High Pressure Metallic Pumps deliver discharge pressure twice the inlet pressure, up to 250 PSI (17.2 BAR). Designed for filter press feed and applications requiring higher discharge pressures. Available in Aluminum, Cast Iron and Stainless Steel with various elastomer options.
