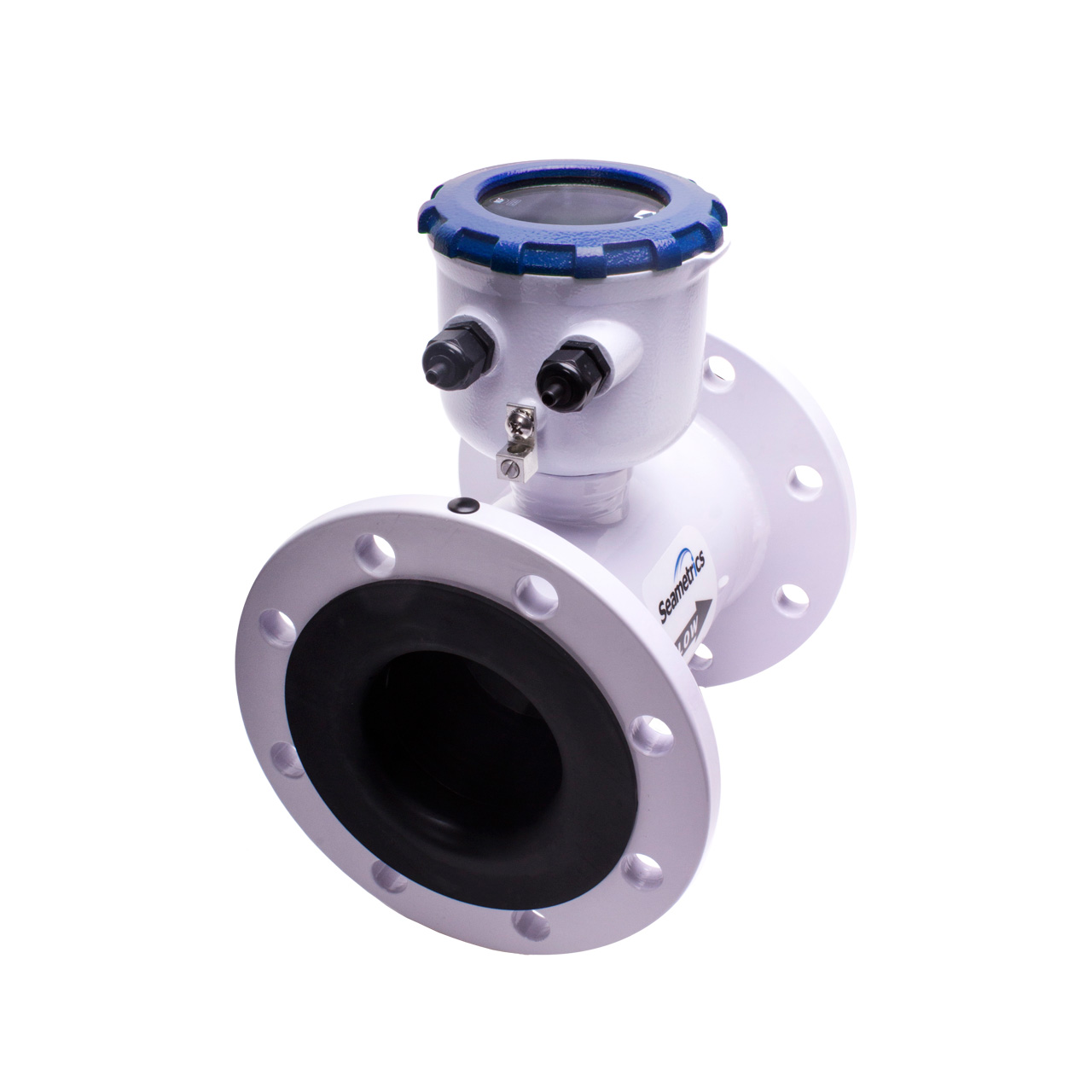

Seametrics - Industrial Magmeter - Flow Meter iMAG 4700

The iMAG-Series is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 2” to 12” pipe in municipal or industrial water, waste and reclaimed water, pump stations, and packa.

Call 800-370-0439 for pricing
Part Number
  • 999-637-013
Manufactured
Availability
  • Call for availability

Features

  • Battery Powered Flanged In-line Magmeter, Includes One Pulse Output
  • Easy Setup
  • Battery or external DC power versions
  • Minimal straight pipe
  • Meter mounted rate/total indicator
  • Pulse output standard
  • Additional optional output (DC version) 4-20mA loop, HART/4-20mA, or Modbus
  • Optional datalogger
  • Use in water & wastewater treatment, municipalities, pump skids, pump stations, packaged plants, filtration systems, reclaimed water, hydraulic fracturing
  • 2" - 12" sizes
  • Optional Data Logger
  • Certification to NSF/ANSI Standard 61
  • IP68 rate
  • Applications
    • Water & Wastewater Treatment
    • Municipal
    • Pump Skids
    • Pump Stations
    • Packaged Plants
    • Filtration Systems
    • Reclaimed Water
    • Hydraulic fracturing
The iMAG-Series is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 2" to 12" pipe in municipal or industrial water, waste and reclaimed water, pump stations, and packaged plant applications. Minimal straight pipe requirements allow iMAG-Series meters to be used in piping configurations where there is little space between the meter and an elbow.  iMAG-Series meters are CE certified, certified to NSF/ANSI standard 61 and are rated IP68 for applications where the meter may be operated under water to a depth of at least 10 feet (3 meters) continuously. New Electronics Housings: The bowl shaped electronics housings will now feature a press-on display cover with captive screws vs. the previous threaded design. This change lends to quicker, easier access for battery changes as well as added protection against moisture intrusion.  In addition, Seametrics has minimized the need for accessing the internal electronics by adding a new external connector. Now, power and output connection wiring can be done from outside of the meter, making installation faster and easier!  (as of March 8, 2021)
