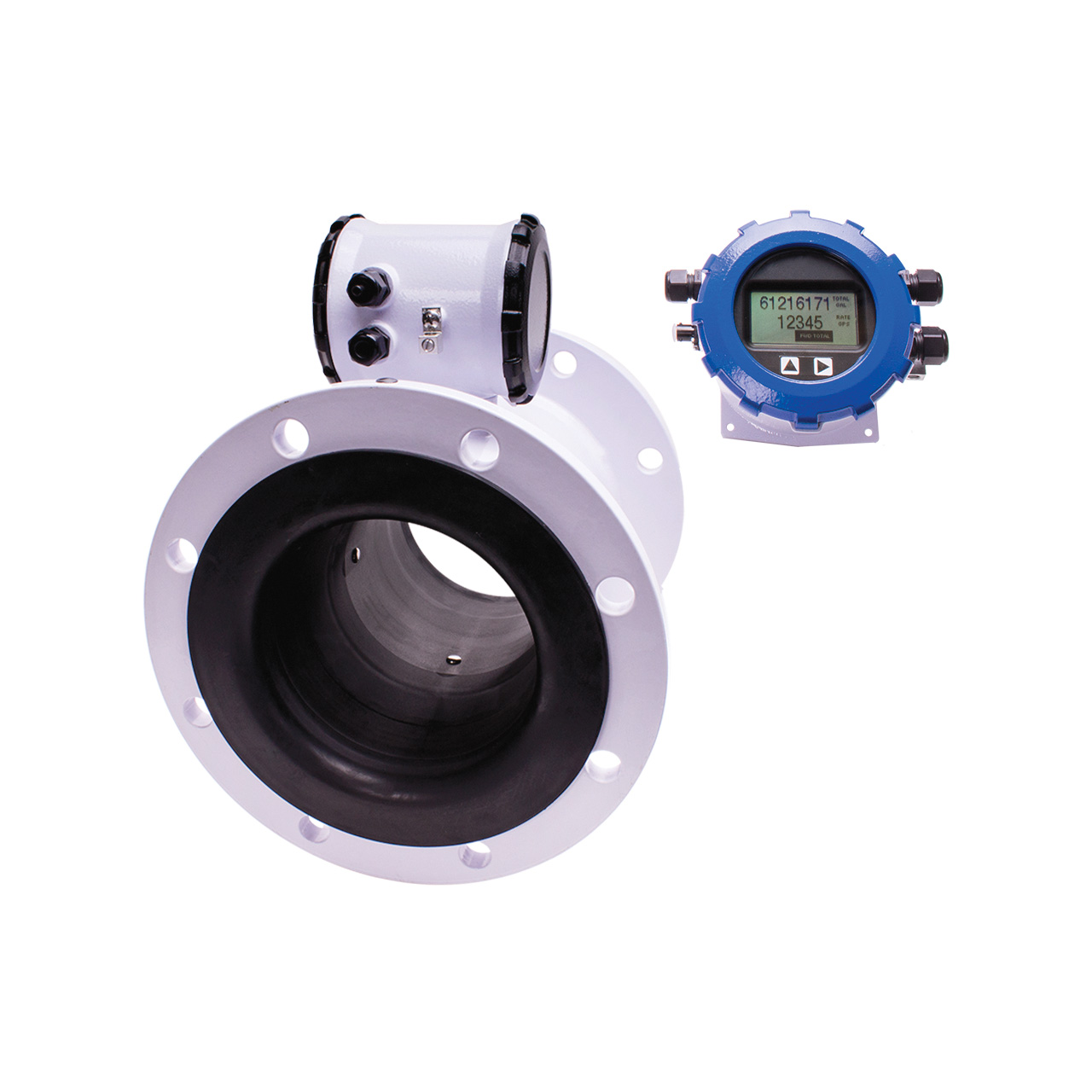

Seametrics - Industrial Magmeter - Flow Meter iMAG 4700r

The iMAG-Series is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 2” to 12” pipe in municipal or industrial water, waste and reclaimed water, pump stations, and packa.

Call 800-370-0439 for pricing
Part Number
  • 999-637-015
Manufactured
Availability
  • Call for availability

Features

  • Remote Display Flanged In-line Magmeter, Includes One Pulse Output
  • Easy setup
  • External AC or DC power versions, with battery backup
  • Minimal straight pipe
  • Remote mounted rate/total indicator
  • Pulse output standard
  • Additional optional output: 4-20mA, HART/4-20mA, or Modbus
  • Optional datalogger
  • Use in water & wastewater treatment, municipalities, pump skids, pump stations, packaged plants, filtration systems, reclaimed water, hydraulic fracturing
  • 2" - 12" sizes
  • Optional Data Logger
  • Certification to NSF/ANSI Standard 61
  • IP68 rate
  • Applications
    • Water & Wastewater Treatment
    • Municipal
    • Pump Skids
    • Pump Stations
    • Packaged Plants
    • Filtration Systems
    • Reclaimed Water
    • Hydraulic fracturing
The iMAG-Series is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 2" to 12" pipe in municipal or industrial water, waste and reclaimed water, pump stations, and packaged plant applications. Minimal straight pipe requirements allow iMAG-Series meters to be used in piping configurations where there is little space between the meter and an elbow. iMAG-Series meters are CE certified, certified to NSF/ANSI standard 61 and are rated IP68 for applications where the meter may be operated under water to a depth of at least 10 feet (3 meters) continuously.
