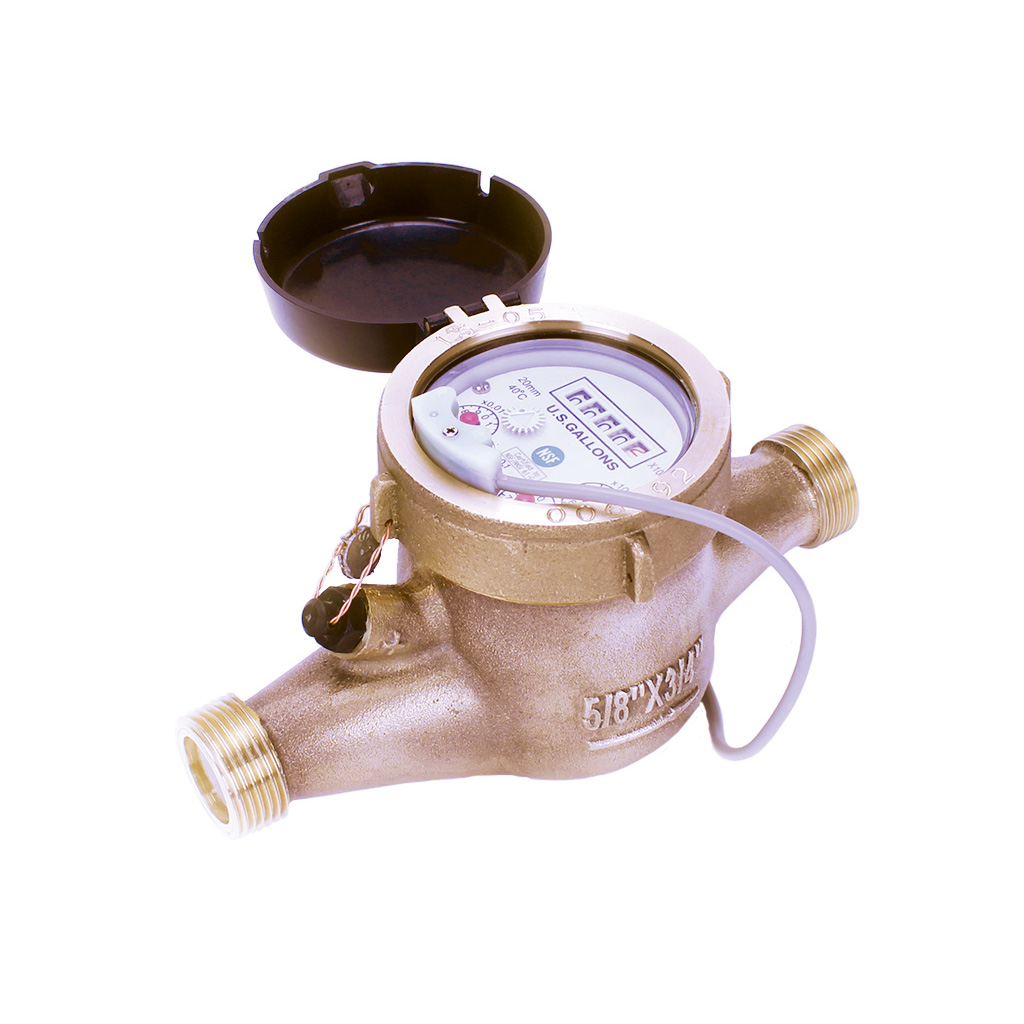

SeaMetrics - Multi Jet Meter - MJN Series Pulse Meter

The MJN-Series meters use the multi-jet principle, which has been an internationally-accepted standard for many years. This type of meter is known for its wide range, simplicity, and accuracy in low- quality water.

Call 800-370-0439 for pricing
Part Number
  • 999-637-007
Manufactured
Availability
  • Call for availability

Features

  • NSF Bronze Body Pulse Meter
  • NSF-61 Certified to comply with federal regulation
  • Brass body
  • Applications
    • Potable Water
    • Cooling Tower Chemical Control
    • Industrial Water Treatment
    • Deduct Metering
    • Pump Pacing
The MJN-Series meters use the multi-jet principle, which has been an internationally-accepted standard for many years. This type of meter is known for its wide range, simplicity, and accuracy in low- quality water.  The Seametrics MJN-Series are certified to NSF/ANSI standard 61. The impeller is centered in a ring of jets, with inlet jets on one level and outlet jets on another. A gear train drives the register totalizer dials. For pulse output, one of the pointers is replaced by a magnet, which is detected by an encapsulated sensor attached to the outside of the lens. Pulse rate is determined by the dial on which the magnet is placed, and by the number of sensors (single or double).
