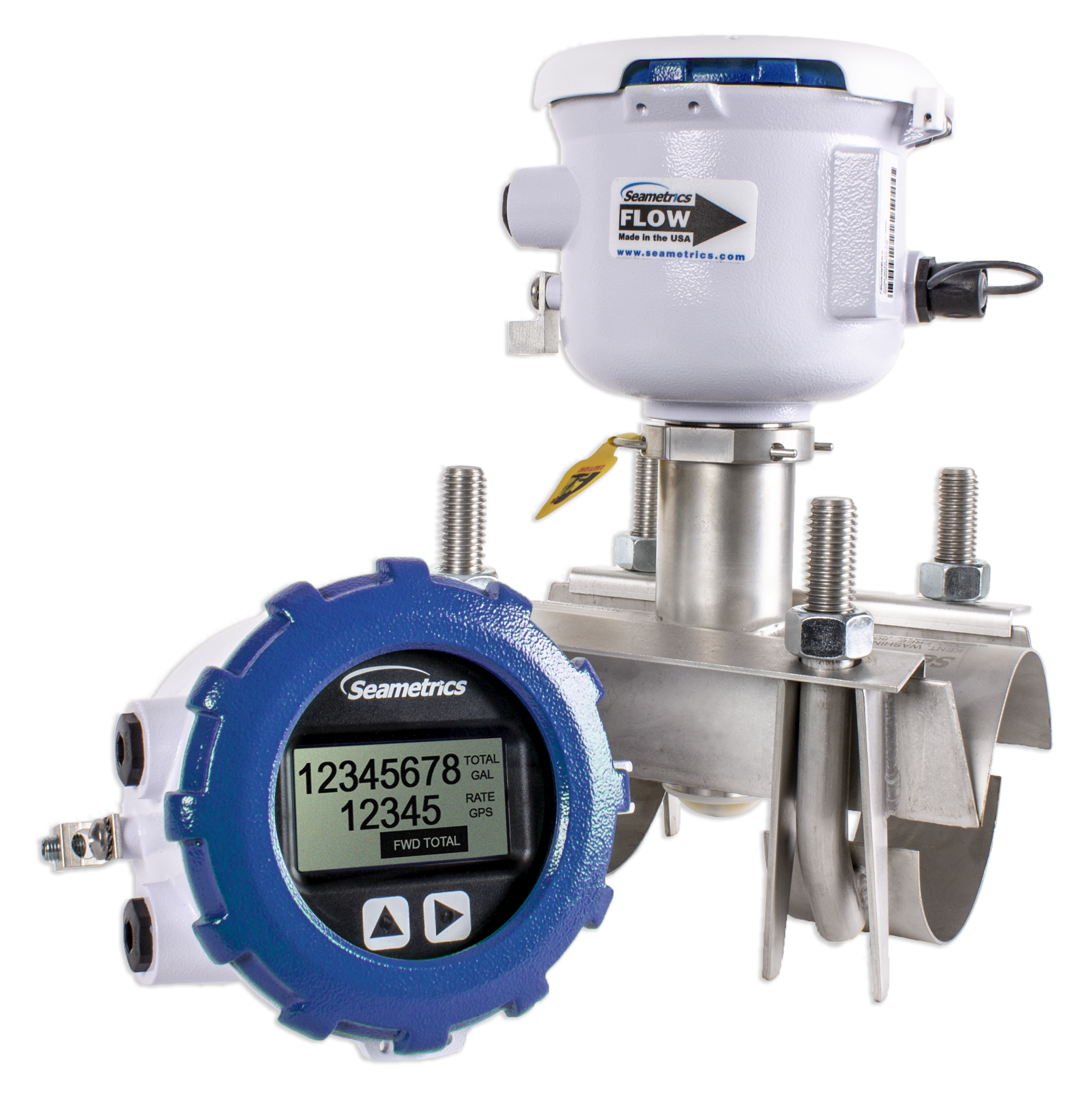

SeaMetrics - Industrial Magmeter - EX90 Battery Powered Insertion Magmeter

The EX90-series battery powered, insertion electromagnetic flow meter is designed for use with conductive fluids in 4"–12" pipe. The EX90's stainless steel body allows the meter to operate in a wide range of temperatures, pressure, and corrosive or dirty environments. The EX90 is highly suitable for difficult applications. With no moving parts, these meters can be used in "dirty water" applications where debris would foul a mechanical meter. If the EX90 meter is used with a programmable controller, the output signal can be fed direct, with no other conditioning required. NSF-61 Certified: The stainless steel versions of our popular EX Series Insertion Magmeters are now certified! Please note that this only applies to units purchased with standard EPDM o-rings, Viton o-rings are still pending certification. New Electronics Housings: The bowl shaped electronics housings will now feature a press-on display cover with captive screws vs. the previous threaded design. This change lends to quicker, easier access for battery changes as well as added protection against moisture intrusion.  In addition, Seametrics has minimized the need for accessing the internal electronics by adding a new external connector. Now, power and output connection wiring can be done from outside of the meter, making installation faster and easier!  (as of March 8, 2021)
