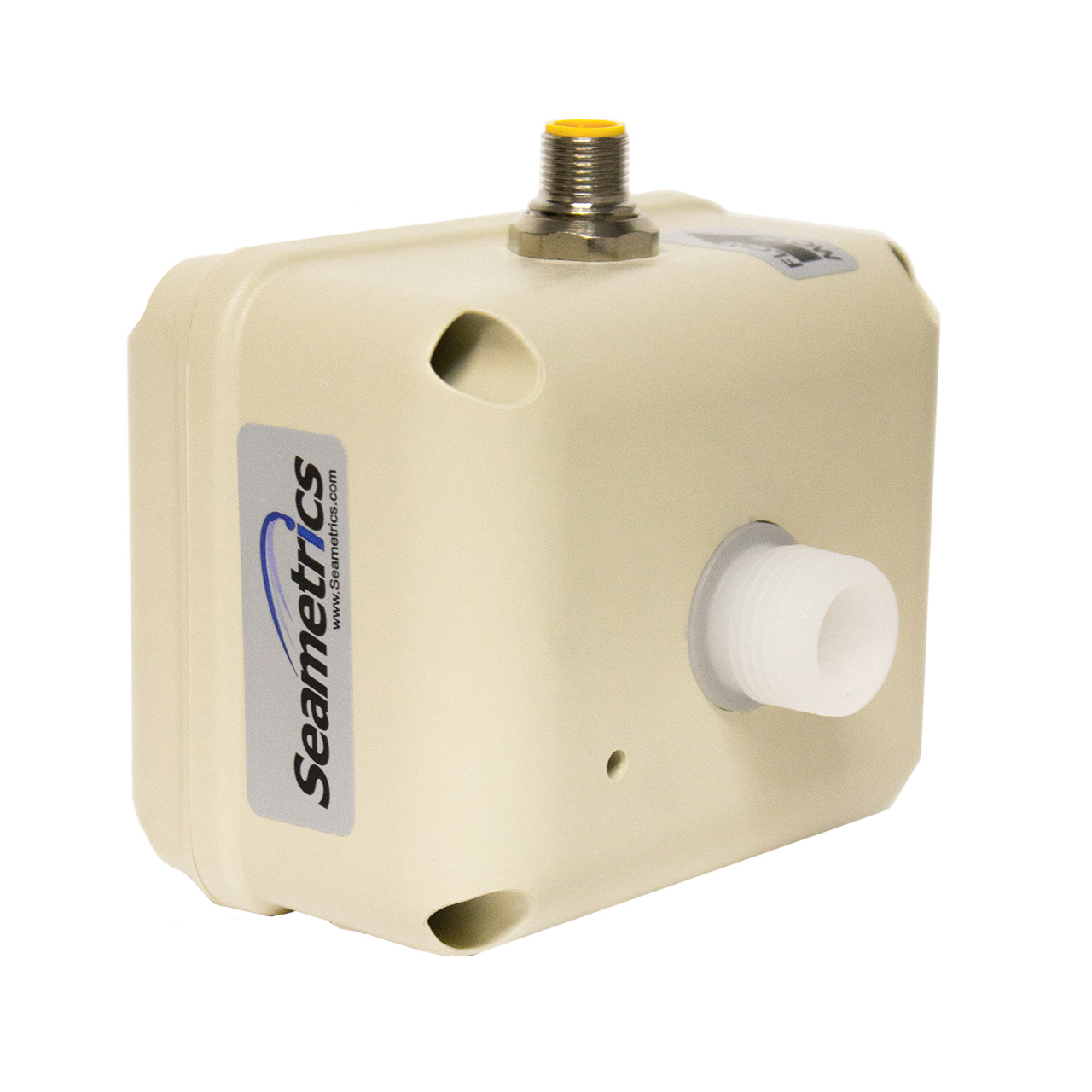

SeaMetrics - Industrial Magmeter - PE202 Inline Low-Flow Magmeter

The PE202 magmeter is designed for low-flow chemical injection or difficult-to-meter applications with pulsating metering pumps in 3/4” to 1/4” pipe/tube. The housing is made of sturdy splashproof HDPE plastic.

Call 800-370-0439 for pricing
Part Number
  • 999-637-020
Manufactured
Availability
  • Call for availability

Features

  • No Moving Parts
  • Requires no straight pipe
  • Pulse and/or 4-20 mA output
  • Chemical and corrosion resistant
  • Insensitive to fluid density and fluid viscosity changes
  • Applications
    • Chemical Injection
    • Corrosive Materials
    • Low Flow Applications
    • Pulsating Flows (e.g. metering pump)
The PE202 magmeter is designed for low-flow chemical injection or difficult-to-meter applications with pulsating metering pumps in 3/4" to 1/4" pipe/tube. The housing is made of sturdy splashproof HDPE plastic. With no moving parts, the PE202 can handle fluids containing particulate matter without clogging or jamming, keeping maintenance at a minimum. With no metallic parts (100% PVDF body and PVDF carbon fiber-filled electrodes), the meter is corrosion-resistant and compatible with a wide range of chemicals. Accuracy is maintained with conductive fluids (>20 microSiemens) of varying viscosities and densities.
