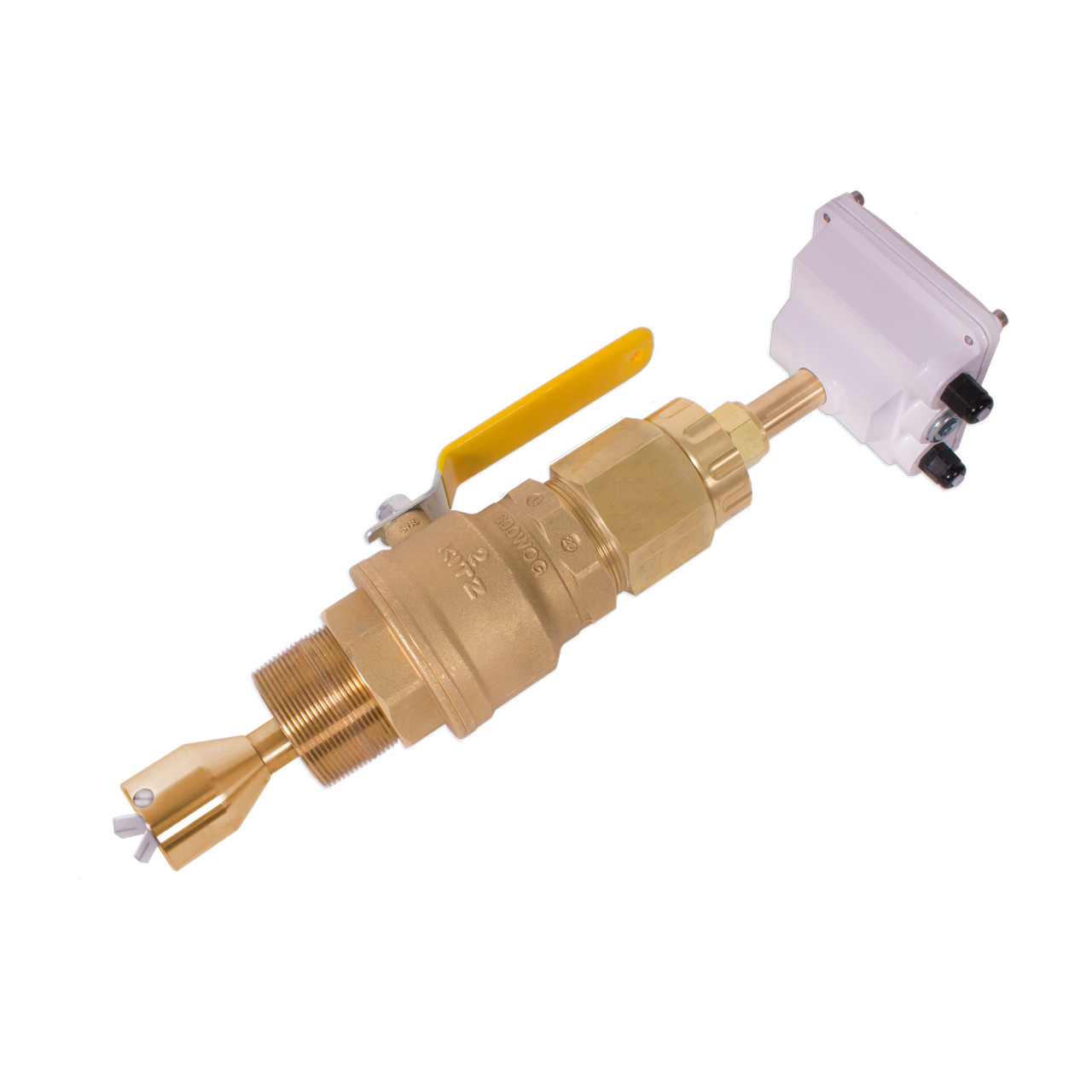

SeaMetrics - Mechanical Paddlewheel Meter - IP150/200 - Hot-Tap Adjustable Depth Insertion Paddlewh

The IP100/200-Series are adjustable depth insertion paddlewheels that come in brass, PVC, or 316 stainless models to fit 3” to 40” pipe. Adapters mate with standard 1-1/2” (11x/21x) or 2” (15x/25x), or PVC (11x/21x) NPT threaded fittings such as saddles a.

Call 800-370-0439 for pricing
Part Number
  • 999-637-031
Manufactured
Availability
  • Call for availability

Features

  • Isolation valve allows insertion and removal with the pipe under pressure
  • Two sizes fit entire pipe range: IP150 to 12″, IP250 to 40″
  • High-quality ruby bearings for excellent low-flow performance and long life
  • One easily-replaced moving part
  • Square-wave frequency output can connect directly to PLC's or counter controls
  • Uses standard NPT threaded pipe fittings or saddles
  • Controls can be remote or meter mounted
  • Applications
    • Clean Water
    • Large Pipes
    • Aquariums
    • Water Parks
    • Water & Wastewater Monitoring
The IP100/200-Series are adjustable depth insertion paddlewheels that come in brass, PVC, or 316 stainless models to fit 3" to 40" pipe. Adapters mate with standard 1-1/2" (11x/21x) or 2" (15x/25x), or PVC (11x/21x) NPT threaded fittings such as saddles and weldolets which may be purchased as well.
