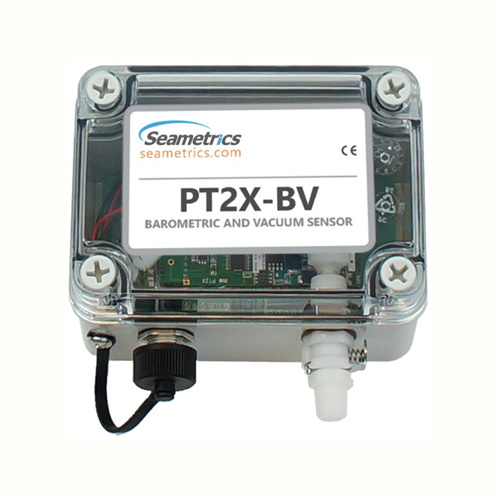

SeaMetrics - Pressure & Level Sensor - PT2X-BV - Barometric & Vacuum with Datalogging

The Seametrics PT2X-BV is a special version of the PT2X designed to measure barometric and vacuum pressure in reference to absolute pressure, along with temperature and time. It will measure pressure/ vacuum from 600 to 1100 millibars.

Call 800-370-0439 for pricing
Part Number
  • 999-637-048
Manufactured
Availability
  • Call for availability

Features

  • Provides barometric compensation for PT2X sensors with free Aqua4Plus software
  • Stores over 520,000 records of pressure, temperature, and time data
  • Includes RS485 interface for easy networking
  • Available in a weatherproof box or 316 stainless steel tube (NPT optional)
  • Applications
    • Barometrically compensate absolute sensors for level measurement
    • Measure vacuum pressure during vapor extraction pilot testing
    • Supplement aquifer test data in leaky or confined conditions
The Seametrics PT2X-BV is a special version of the PT2X designed to measure barometric and vacuum pressure in reference to absolute pressure, along with temperature and time. It will measure pressure/ vacuum from 600 to 1100 millibars. Pressure measurement is accomplished utilizing an extremely rugged and stable 15 PSIA piezo-electric media-isolated pressure element combined with a 16-bit analog-to-digital converter. This provides extremely accurate and stable pressure input into the microprocessor on the circuit board that measures the pressure, stores the data in non-volatile memory, and communicates the information via a serial communication link (RS485) to the host computer.
