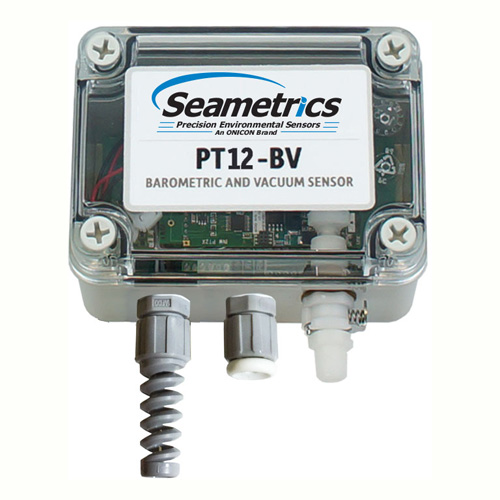

SeaMetrics - Pressure & Level Sensor - PT12-BV - Barometric & Vacuum with Modbus & SDI-12 Interface

The Seametrics PT12-BV comes as a weatherproof stand-alone box or with an automatic compensation wiring option. The PT12-BV measures pressure, temperature, and supply voltage.

Call 800-370-0439 for pricing
Part Number
  • 999-637-050
Manufactured
Availability
  • Call for availability

Features

  • Available as a weatherproof box or 316 stainless steel tube (titanium optional)
  • Provides barometric reference for absolute pressure sensors
  • Automatically compensates for barometric pressure when attached to a PT12 submersible sensor (SDI-12 only)
  • Measures pressure and temperature
  • Applications
    • Barometrically compensate absolute pressure sensors for level measurement
    • Measure vacuum pressure during vapor extraction pilot testing
    • Supplement aquifer test data in leaky or confined conditions
    • Measure accurate barometric pressure
The Seametrics PT12-BV comes as a weatherproof stand-alone box or with an automatic compensation wiring option. The PT12-BV measures pressure, temperature, and supply voltage. The weatherproof box is an ideal barometric reference for absolute pressure sensors. This version features both an SDI-12 interface and a Modbus® RTU interface that makes the product easy to connect to recorders and operates on low power. This makes it a preferred choice for many environmental professionals with existing SDI-12 or Modbus® RTU systems. With the Compensation Wiring Option , the PT12-BV automatically provides barometric compensation for a single attached absolute PT12 submersible pressure sensor. No post processing of data. No need to use a vented cable or worry about maintaining desiccant tubes. This version features an SDI-12 communication interface, making it ideal for many existing environmental systems.
