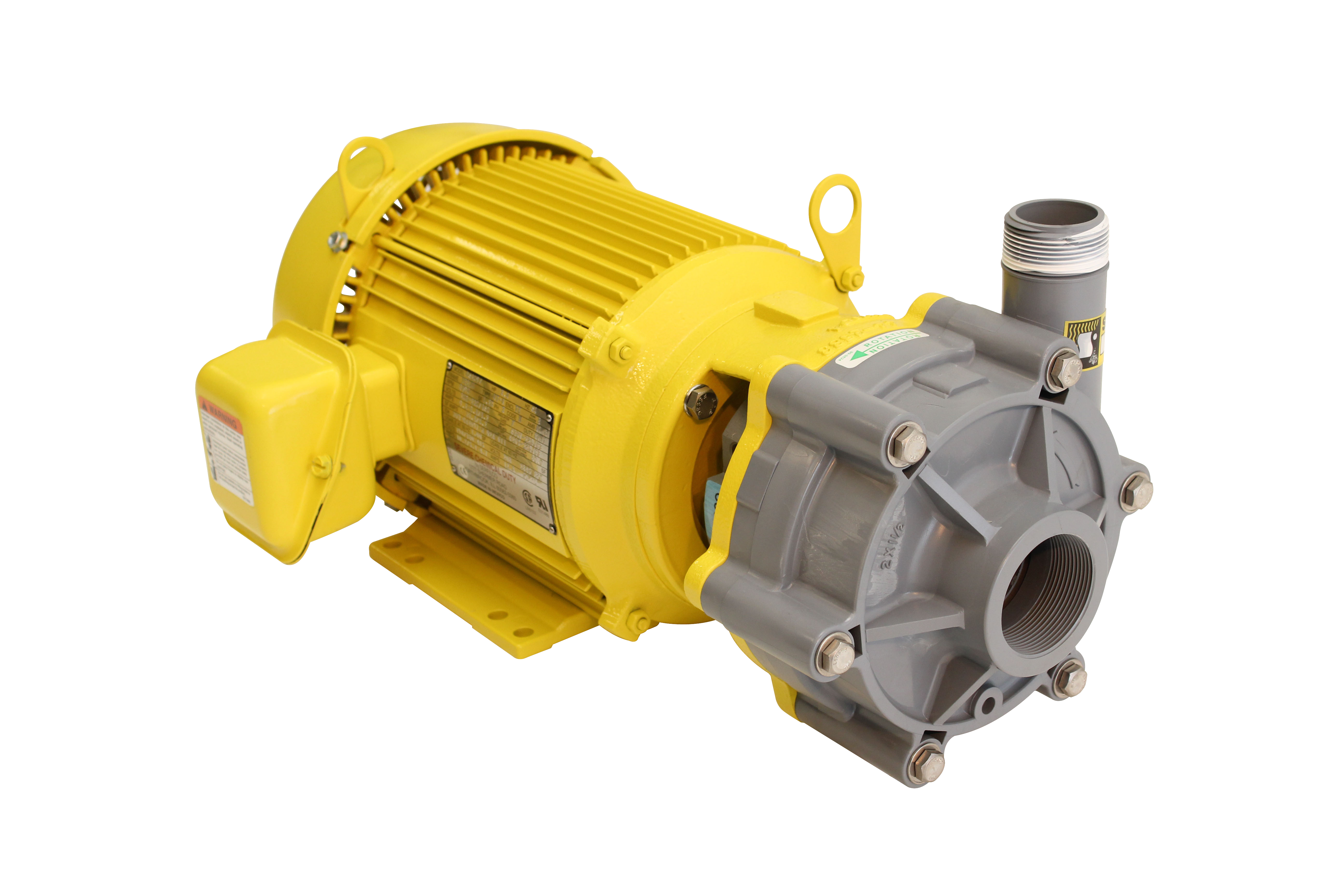

Serfilco - HE Horizontal Pump

The Serfilco's HE Horizontal Pump Series is totally enclosed and the impeller is molded to close tolerances which allow this pump to operate at peak horsepower efficiency across a broad range of operational flow/head requirements. The external mechanical .

Call 800-370-0439 for pricing
Part Number
  • 999-508-015
Manufactured
Availability
  • Call for availability

Features

  • Flows to 175 gpm or 130' TDH @ 60 Hz
  • Non-metallic solution contact PPP, CPVC, PVDF or ECTFE
  • Single or double mechanical seal
  • Centrifugal - quiet, vibration-free
  • NPT or metric connections available
  • Chemical duty motor
The totally enclosed impeller is molded to close tolerances which allow this pump to operate at peak horsepower efficiency across a broad range of operational flow/head requirements.The external mechanical seal and impeller sleeve design isolates metal components to provide non-metallic solution contact with the pumped solution. The standard (M8) seal assembly has silicon carbide seal faces and is the most durable and longest lasting mechanical seal available. The double mechanical seal models require water lubrication of the seal faces and allows the pump to be used for solutions containing abrasives, high salt concentrations and for electroless plating solutions. Standard models are constructed of CPVC, PP, PVDF or ECTFE with threaded connections. Elastomers are EPDM or FKM. The mechanical seal is type 21, externally mounted with SS components not in solution contact. A double mechanical seal is recommended for solutions containing abrasives and for high temperature or other critical service. Close coupled motors are NEMA 'JM' or metric (IEC) standard. The motors designated NEMA can operate on 50 or 60 Hz at full rated horsepower. Material: Performance:
