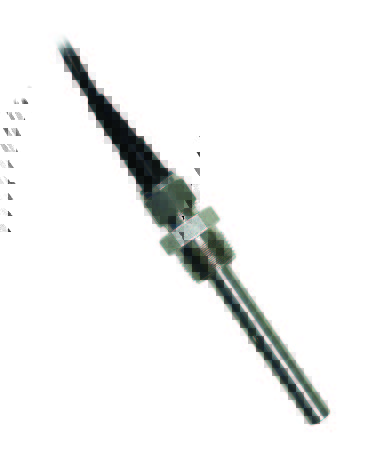

Sensorex - CS700 Contacting Conductivity Sensor

The Sensorex CS700 Conductivity Sensor is ideally suited for ultrapure/pure water, drinking water, and lower-conductivity drinking water applications. It’s durable in high-temperature (150° C / 302° F) and high-pressure environments (1,379 kpa / 200 psig).

Call 800-370-0439 for pricing
Part Number
  • 999-543-018
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Cell Constants: 0.01/cm
  • Response Time: < 30 seconds
  • Temperature Rating: 150° C (302° F) with high temperature cable, 70° C with standard cable
  • Pressure Rating: 1379 kPa (200 psig)
  • Materials of Construction: 316 Stainless Steel Body with Teflon wetted materials
  • Process Connection: 3/4” NPT or 1/2” NPT
  • Communication: Raw output (standard) or Remote Electronics (Modbus)
  • Temperature Compensation: Pt1000 RTD
  • Applications
    • Conductivity
The Sensorex CS700 Conductivity Sensor is ideally suited for ultrapure/pure water, drinking water, and lower-conductivity drinking water applications. It's durable in high-temperature (150° C / 302° F) and high-pressure environments (1,379 kpa / 200 psig), thanks to stainless steel and PEEK construction. In addition, quick installation is made possible via using compression fitting with 3/4" or 1/2" threads. Pick from three cell constants based on your application: 0.01, 0.1 (available soon) and 1.0 (available soon). Benefits: High Accuracy and Repeatability Multiple Cell Constants Cover Wide Range of Applications Durable in High-Temperature and High-Pressure Environments *Accuracy and repeatability of the sensor depends on the accuracy of the calibrating electronics
