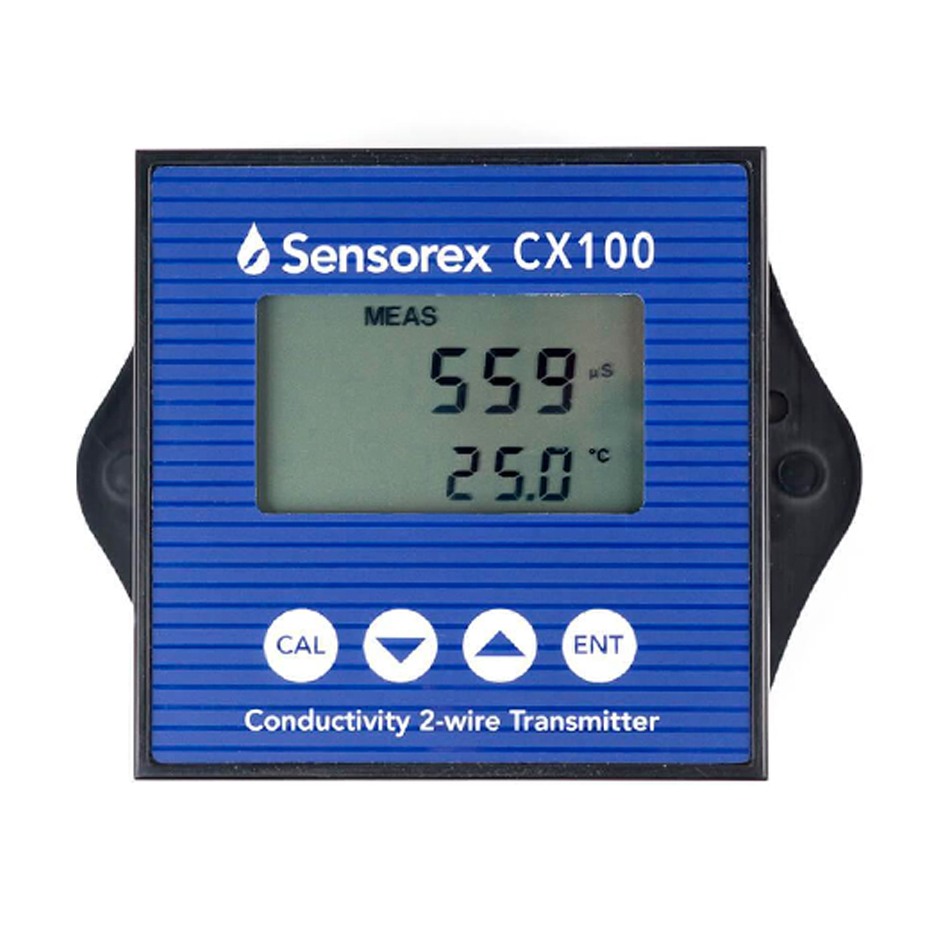

Sensorex - CX100 Loop-Powered Contacting Conductivity Transmitter

The Sensorex CX100 is a loop powered conductivity transmitter for use with contacting conductivity sensors. The 4-20mA output is ideal for connecting to a PLC for advanced control systems. Easily power the unit with available two-wire power supply loop. V.

Call 800-370-0439 for pricing
Part Number
  • 999-543-020
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Measurement Range:
    • (R1) 0-19.99 uS/cm, 0.01 uS/cm resolution;
    • (R2) 0-199.9 uS/cm, 0.1 uS/cm resolution;
    • (R3) 0-1999 uS/cm, 1 uS/cm resolution;
    • (R4) 0-10.00 mS/cm, 0.01 mS/cm resolution;
    • (R5) 0-19.99 mS/cm, 0.01 mS/cm resolution;
    • (R6) 0-199.9 mS/cm, 0.1 mS/cm resolution
  • Cell Constants: k=0.1 (R1-R5), k=1.0 (R1-R6), k=10 (R2-R6)
  • Measurement Accuracy: +/- 1% full scale range
  • Temperature Range: 0 °C to 100 °C , 0.1° C resolution, +/- 0.5 °C accuracy
  • Calibration Mode: Automatic with built-in standard solutions manual cell constant adjustment
  • Output: Isolated DC 4-20mA
  • Enclosure: NEMA 4X IP65, with push-button control pad. HWD: 96 mm (3.77″) x 96 mm (3.77″) x 66mm (5.20″), 1/4 DIN
  • Mounting Options: Panel or Wall mount
  • Ambient Operating Temperature: 0° C to 50° C
  • Display: Dual display custom LCD
  • Temperature Compensation: Pt100 RTD with automatic compensation or manually configured
  • Power Requirement: 12-24V DC, maximum 600Ω load
  • Certifications: CE
  • Warranty: One year limited warranty
  • Applications
    • Controllers
    • Transmitter
The Sensorex CX100 is a loop powered conductivity transmitter for use with contacting conductivity sensors. The 4-20mA output is ideal for connecting to a PLC for advanced control systems. Easily power the unit with available two-wire power supply loop. Versatile mounting options for wall or panel mount. SPECIFICATIONS: Note: Transmitter is only compatible with sensors with tinned leads and Pt100 RTD temperature compensation.
