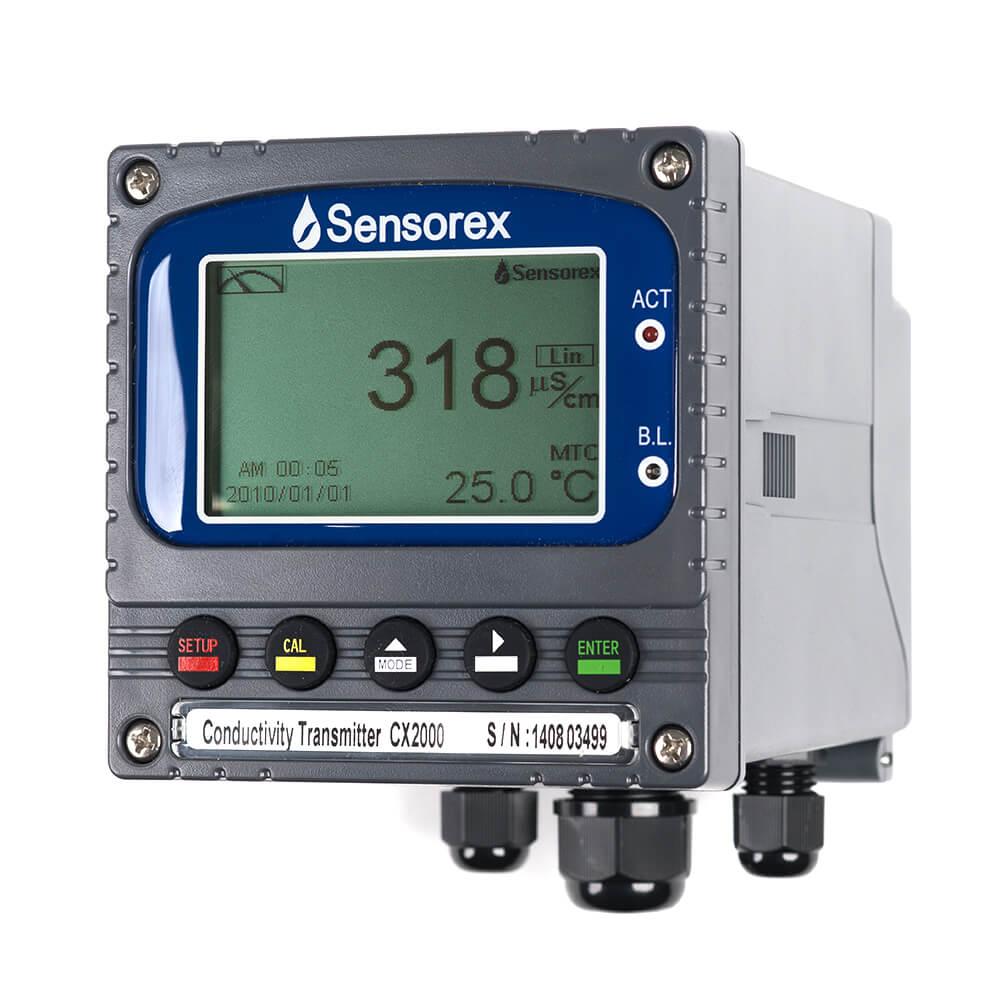

Sensorex - CX2000 Conductivity Transmitter/Controller

Features

• Measuring Range:
  • Conductivity:  0.000 uS/cm -200.0 mS/cm in 5 ranges 0.01/.01/1 uS/cm, 0.01/0.1mS/cm resolution, +/-1% Accuracy (+/- 1 digit)
  • Resistivity:  0.00-20.00 MΩ • cm, 0.01 MΩ • cm resolution, +/-1% Accuracy(+/- 1 digit)
• Temperature Range:  -30 °C to 130 °C, 0.1 °C resolution, 0.2 °C accuracy
• Calibration Mode:  Automatic with built-in standard solutions manual cell constant adjustment
• Cell Constants: 0.01, 0.05, 0.1, 0.5, 10/cm fixed or freely selectable 0.0080 - 19.99/cm
• Analog Output 1: Isolated DC 0/4 -20mA, corresponding to conductivity or resistivity. Max load 500 Ω.
• Analog Output 2: Isolated DC 0/4 -20mA, corresponding to temperature output. Max load 500 Ω.
• Set-Points:
  • Contact: 240V AC,  5A max
  • Activate: setpoints Hi/Low,  Hi/Hi,  Low/Low,  ON/OFF
• Enclosure: NEMA 4X IP65, with push-button control pad. HWD: 96 mm (3.77”) x 132 mm (5.20”), 1/4 DIN
• Panel Cut-Out:   93mm (3.66”) x 93mm (3.66”)
• Weight:  approximately 0.50 kg (1.1lb)
• Mounting Options:  Panel or Wall Mount
• Ambient Temperature:  -0 ° C to 50 ° C
• Storage Temperature: -10 ° C to 70 ° C
• Temperature Compensation: NTC 30K or Pt1000 RTD with automatic compensation or manual
• Temperature Coefficient: Linear comp 0.00-40.00%, Non-linear comp for natural waters
• Power requirement:  100-240V AC +/- 10%, 5W max, 50/60 Hz
• Applications
  • Conductivity
  • Controller
  • Transmitter
  • Cooling Tower
