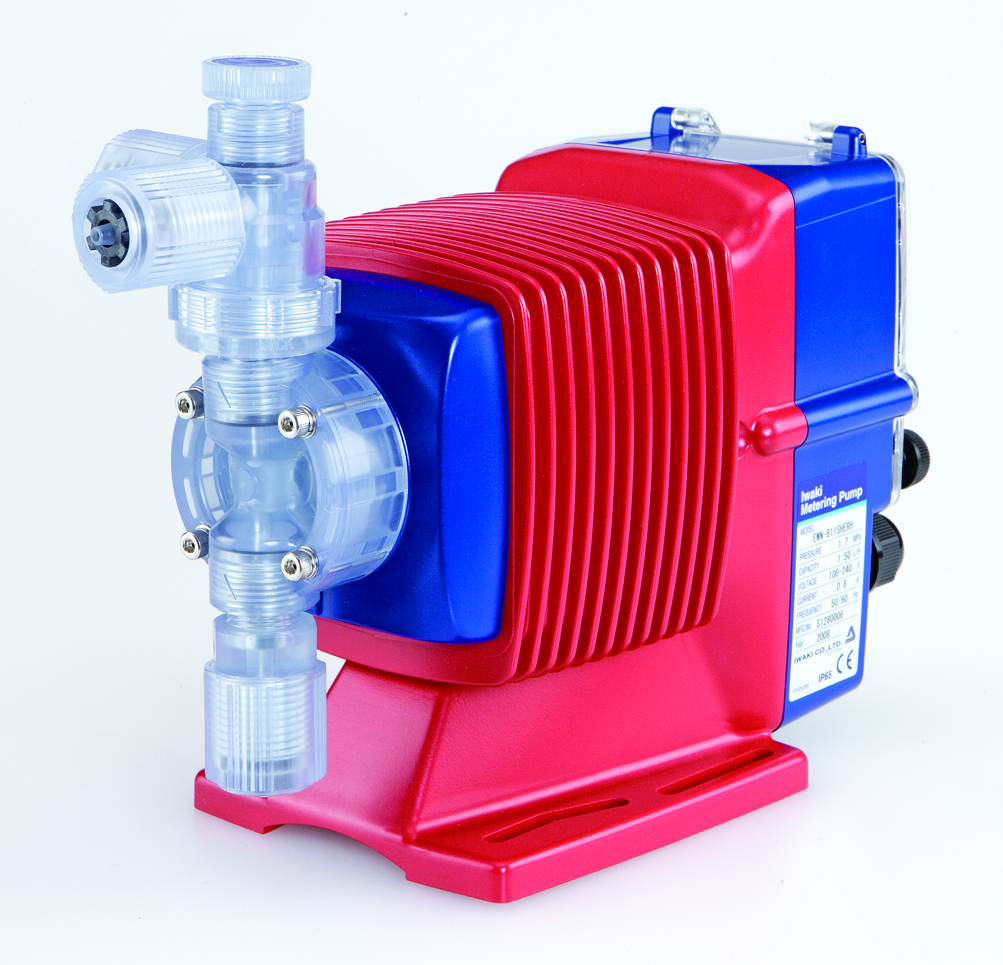

Walchem - EWN-B16VCUR Metering Pump

The EWN-R Series electronic metering pumps offer superior high speed dosing capability with more standard features. The flexibility of the EWN-R pump enable it be integrated into virtually any chemical feed application using a universal-voltage, digital c.

Call 800-370-0439 for pricing
Part Numbers
  • EWN-B16VFUR
  • EWNB16VFUR
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • EWN-R Series
  • 20W drive
  • Diaphragm diameter: 15mm
  • Wet end materials: VC
    • Pump Head: PVC
    • Diaphragm: PTFE +EPDF
    • Valve Balls: CE
    • Valve Seat: FKM
    • O-ring Seal: FKM
    • Gasket: PTFE
  • Tubing Connection: 3/8”
  • Power: 115 volts
  • Controller: standard type
  • Maximum output capacity:
    • 1.0 GPM
    • 65 mL/min
    • 0.04-0.18 mL/shot
  • Maximum rated discharge pressure: 105 PSI
  • Maximum useable pressure: 116 PSI
  • Stroke rate (spm): 0.1 to 100 (1to 360)
  • Stroke length rate (mm): 20 to 100 (0.2 to 1.0)
Walchem EWN-B16VCUR Metering Pump The EWN-R Series electronic metering pumps offer superior high speed dosing capability with more standard features. The flexibility of the EWN-R pump enable it be integrated into virtually any chemical feed application using a universal-voltage, digital controller with an expanded set of control features. Superb valve performance and advanced solenoid engineering combine to make a highly precise pump for the most demanding applications.
