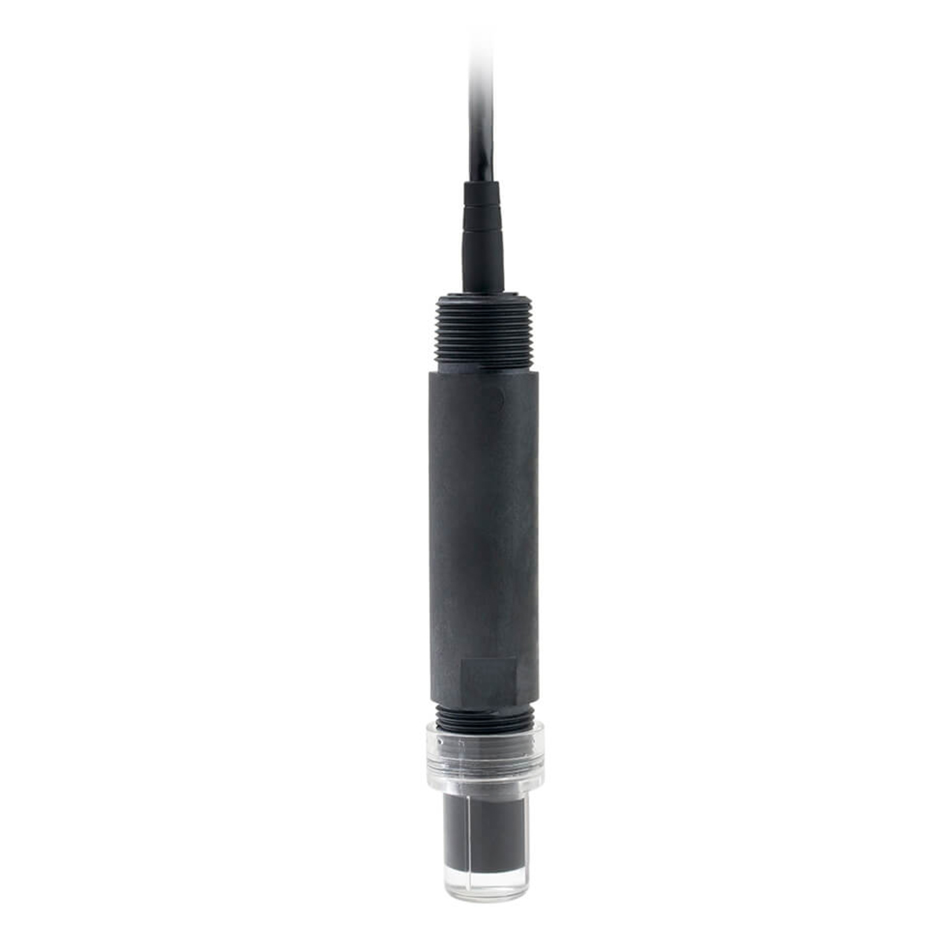

Sensorex - S272CD-ORP Online Process ORP Sensor with Digital Communication
Moderately contaminated water, such as industrial source water or natural water resources, may contain chemicals and debris that damage ORP probe components. Continuous monitoring in these types of applications requires a durable and low maintenance ORP p.
Overview
Features
- Connectors:
- BNC
- Tinned Leads
- Cable length:
- 10 feet (3 meters)
- Digital Communication:
- 4-20 mA
- Modbus with 24VDC Input
- NoneMeasurement Range: +/-2000 mV
- Temperature Range: 0-100⁰ C
- Pressure Range: 0 – 100 PSIG
- Body Construction: Ryton Polyphenylene Sulfide (PPS)
- Process Connection: 3/4″ MNPT for submersion or in-line
- Connector: BNC or Tinned Leads
- Cable Length: 10 feet (3 meters) or 20 feet (6 meters)
- Warranty: One year limited warranty
- Applications
- Wastewater
Description
Moderately contaminated water, such as industrial source water or natural water resources, may contain chemicals and debris that damage ORP probe components. Continuous monitoring in these types of applications requires a durable and low maintenance ORP probe. The Sensorex S272 series of ORP probes feature a double junction design to protect the reference cell from contamination by sample components that interact with silver. The flat measurement surface is self-cleaning and resists breakage, for minimal maintenance.
BENEFITS:
