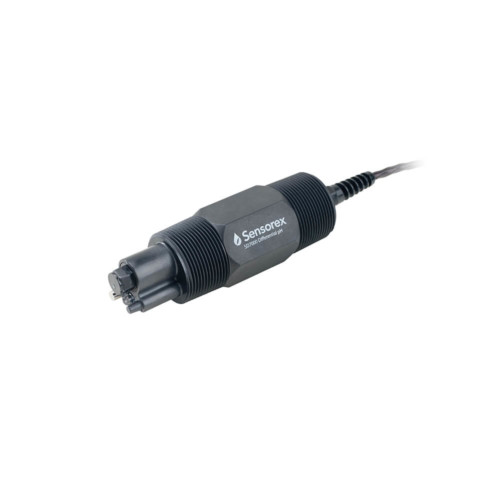

Sensorex - SD7000CD and SD7000CD-ORP 5-Wire Differential Sensor
The Sensorex SD7000 series of differential pH sensor offers unsurpassed pH measurement accuracy by minimizing reference junction fouling and eliminating ground loops. These units deliver greater reliability and less required maintenance than a conventiona.
Overview
Features
- Measurement Range: 0-14 pH (low NA+ ion error)
- Temperature Range: 0-100⁰ C
- Pressure Range: 0 – 100 PSIG @ 40⁰ C (PVC fitting); 0 – 100 PSIG @ 60⁰ C (CPVC fitting); 0 – 100
- PSIG @ 100⁰ C (stainless steel fitting) Body Construction: Ryton Polyphenylene Sulfide (PPS)
- Response Time: 95% in 1 second
- Isopotential: 7.00 pH
- Offset: 0.2%
- Span: > 97%
- Temperature Compensation: 300Ω NTC
- Connector: Tinned Leads
- Cable Length: 20 feet (6 meters)
- Installation: 1 1/2″ NPT
- Warranty: Two year limited warranty
Description
The Sensorex SD7000 series of differential pH sensor offers unsurpassed pH measurement accuracy by minimizing reference junction fouling and eliminating ground loops. These units deliver greater reliability and less required maintenance than a conventional combination pH sensor. Extended sensor lifetime can be achieved by replacing the sensor reference (salt bridge). Reliably measures pH in environments with rapid temperature changes with built-in quick response automatic temperature compensation (ATC).
BENEFITS:
