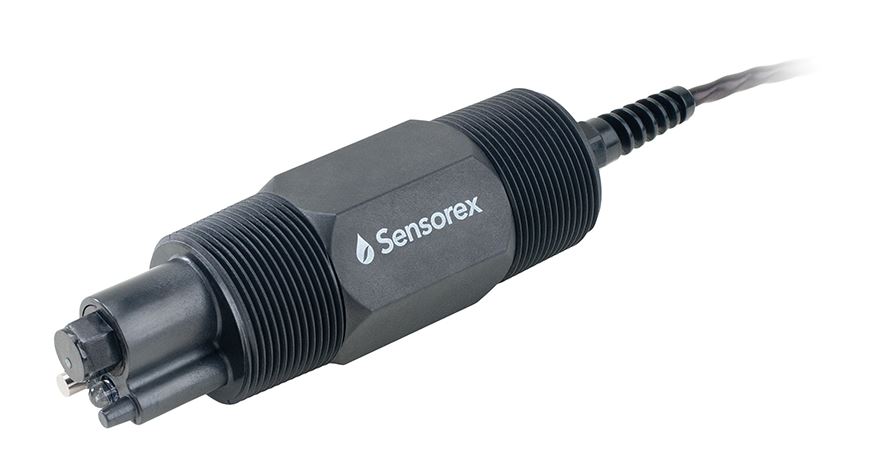

Sensorex - SD7420CD-ORP Differential ORP Probe
When an ORP sensor is constantly measuring a wastewater treatment process, it will be exposed to chemicals, suspended solids, and other contaminants. These contaminants can cause fouling of the ORP sensor reference, leading to sensor failure. The Sensorex.
Overview
Features
- Measurement Range: -2000mV to +2000mV
- Temperature Range: 0-100⁰ C
- Pressure Range: 0 – 100 PSIG @ 40⁰ C (PVC fitting); 0 – 100 PSIG @ 60⁰ C (CPVC fitting); 0 – 100 PSIG @ 100⁰ C (stainless steel fitting)
- Body Construction: Ryton Polyphenylene Sulfide (PPS)
- Temperature Compensation: 300Ω NTC
- Connector: Tinned Leads
- Cable Length: 20 feet (6 meters)
- Power Supply (not included): 12 to 30 V DC (>24 V DC recommended)
- Installation: 1 1/2″ NPT
- Warranty: Two year limited warranty
Description
When an ORP sensor is constantly measuring a wastewater treatment process, it will be exposed to chemicals, suspended solids, and other contaminants. These contaminants can cause fouling of the ORP sensor reference, leading to sensor failure. The Sensorex differential ORP sensors utilize three electrodes instead of the conventional two. This special design allows the sensor reference (salt bridge) and buffered electrolyte solution to be replaced, which extends working lifetime. Our SD7420CD features differential sensor technology with a direct 4-20mA output, so it can be integrated into control systems without the use of a transmitter or controller.
BENEFITS:
