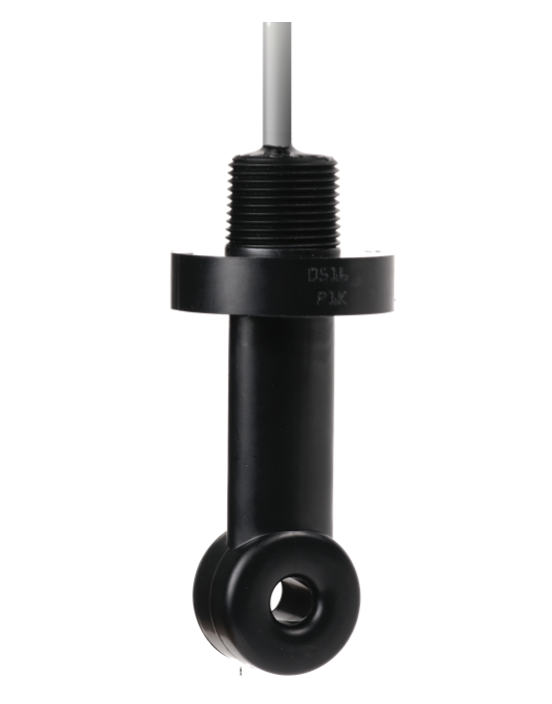

Sensorex - TCS3020 General Purpose Noryl Toroidal Conductivity Sensor

Sensorex’s TCS3020 General Purpose Noryl Toroidal Conductivity Sensor is designed to be resistant to corrosion, coating, and fouling. Noryl body provides wide solvent tolerance and is stable up to 105 C. It can measure conductivity up to 2,000,000 uS.

Call 800-370-0439 for pricing
Part Number
  • 999-543-050
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Measuring Range: 0 – 2,000,000 uS
  • Body Material: Noryl
  • Max Temperature: 105° C (if used with FC95C Flow Cell, maximum temperature is 80°C)
  • Max Pressure: 150 psig
  • Temperature Compensation:  PT1000RTD
  • Cable Length:
    • 10 FOOT (3 meters) process 6 conductor cable
    • 20 FOOT (6 meters) process 6 conductor cable
  • Cable Termination Connector:  Tinned Leads
  • Branding:  Sensorex Branded
  • Process Connection:
    • ¾” MNPT for submersion
    • 2” Slip Fitting for FC95C Flow Cell
  • Applications
    • Metal Finishing
Sensorex's TCS3020 General Purpose Noryl Toroidal Conductivity Sensor is designed to be resistant to corrosion, coating, and fouling. Noryl body provides wide solvent tolerance and is stable up to 105 C. It can measure conductivity up to 2,000,000 uS. BENEFITS:
