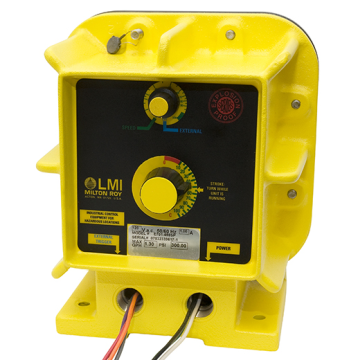

LMI - E Series Metering Pump

Designed for environments that demand additional safety features, the E7 Explosion-proof chemical metering pump delivers the protection your chemical application requires.  Built with a rugged urethane coated cast housing, the E7 Series is designed specif.

Call 800-370-0439 for pricing
Part Number
  • 999-1539-018
Manufactured
Availability
  • Call for availability
Product Specs (2 Files)

Features

  • Model E70
    • Max Output: GPH 1.3 l/h 4.9 - Max Pressure: PSI 300 Bar 20.7
  • Model E71:
    • Max Output: GPH 2.5 l/h 9.5 - Max Pressure: PSI 150 Bar 10.3
  • Model E72:
    • Max Output: GPH 4 l/h 15.1 - Max Pressure: PSI 100 Bar 6.9
  • Model E73:
    • Max Output: GPH 8 l/h 30.3 - Max Pressure: PSI 60 Bar 4.1
  • Model E74:
    • Max Output: GPH 20 l/h 76 - Max Pressure: PSI 25 Bar 1.7
  • Applications
    • Water Treatment
    • Waste Water Treatment
    • Chemical Processing
    • Food & Beverage
    • Oil & Gas
    • General Industry
    • Power Generation
    • Pulp & Paper
    • Textiles
Designed for environments that demand additional safety features, the E7 Explosion-proof chemical metering pump delivers the protection your chemical application requires. Built with a rugged urethane coated cast housing, the E7 Series is designed specifically for hazardous environments and remote use. It meets or exceeds all standards for Class I, Division I, Groups C and D; Class II, Division I, Groups E, F and G. Available with manual or external controls without the need for costly motors. The robust design of the E Series make it the right choice for hazardous chemical addition applications that require additional safety precautions.
