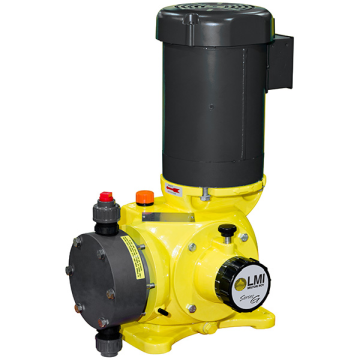

LMI - G Series Motor Driven Metering Pump

A rugged design for the toughest challenge, now with NSF/ANSI 61 and 372 certification.  Available in two motor driven models – the SD and the SG – the Series G Metering Pumps feature rugged aluminum construction specifically engineered to handle higher o.

Call 800-370-0439 for pricing
Part Number
  • 999-1539-019
Manufactured
Availability
  • Call for availability
Product Specs (2 Files)

Features

  • Max Capacity: SD2 – 0.7 GPH (2.6 l/h) - Max Pressure: 175 psi (12 Bar)
  • Max Capacity: SD4 – 12 GPH (45 l/h) - Max Pressure: 150 psi (10.3 Bar)
  • Max Capacity: SD7– 50 GPH (189 l/h) - Max Pressure: 100 psi (6.9 Bar)
  • Max Capacity: SD8 – 115 GPH (435 l/h) - Max Pressure: 75 psi (5 Bar)
  • Max Capacity: SG5 – 106 GPH (400 l/h) - Max Pressure: 150 psi (10.3 Bar)
  • Max Capacity: SG6 – 147 GPH (556 l/h) - Max Pressure: 100 psi (6.9 Bar)
  • Max Capacity: SG7 – 300 GPH (1136 l/h) - Max Pressure: 50 psi (3.4 Bar)
  • Applications
    • Water Treatment
    • Waste Water Treatment
    • Industrial Processing
    • General Industry
    • Agricultural
    • Chemical Processing
A rugged design for the toughest challenge, now with NSF/ANSI 61 and 372 certification.  Available in two motor driven models – the SD and the SG – the Series G Metering Pumps feature rugged aluminum construction specifically engineered to handle higher output and higher pressure applications in harsh environments. Certified with NSF / ANSI 61 and 372 for municipal compliance and safety assurance, the Series G is the right choice when choosing a pump for water treatment. By combining a heavy-duty industrial drive with state-of-the-art design, the Series G offers a mechanically actuated diaphragm that provides smooth output with reduced potential for system shock and hydraulic oil contamination. External speed control, stainless steel fasteners and NSF certifications make this powerhouse pump perfect for water treatment applications. Standard FeaturesOptional Features
