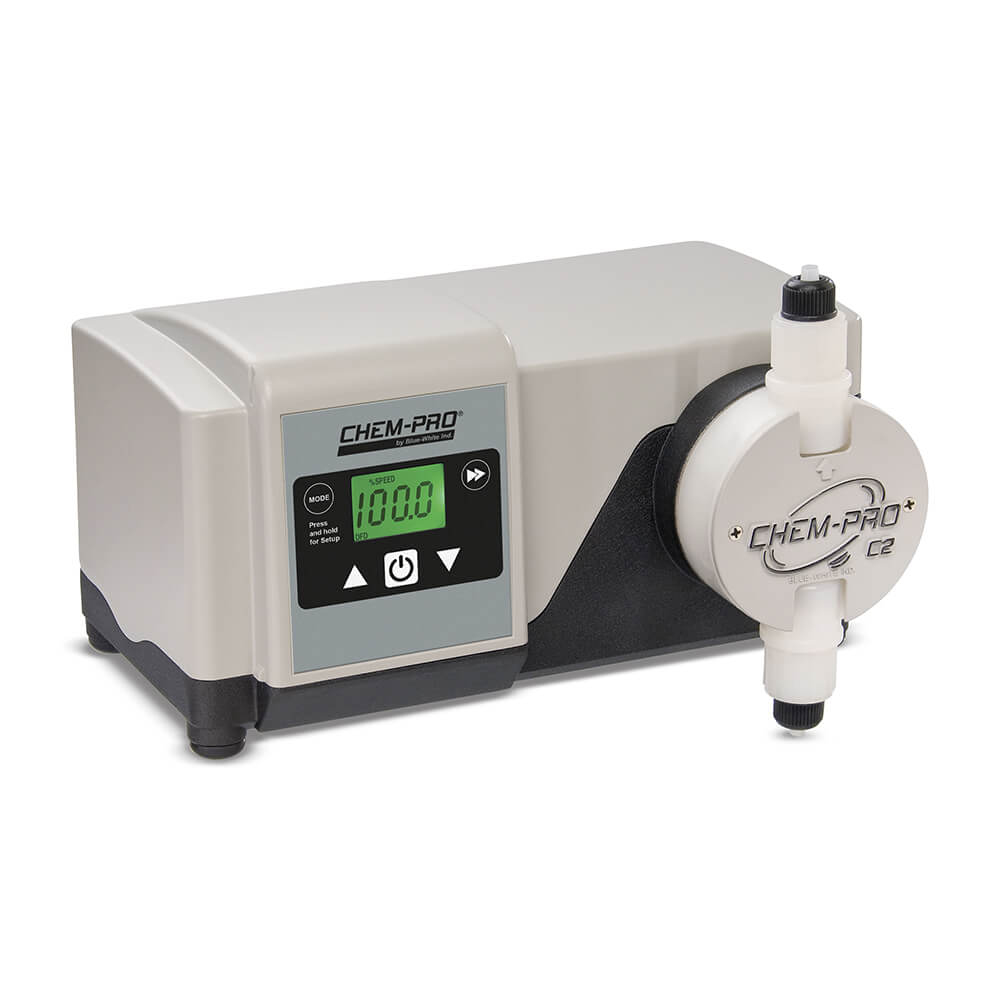

Blue-White C2 CHEM-FEED® Multi-Diaphragm Metering Pump

Features

• Maximum working pressure: 175 psig (12 bar) (model specific)
• Maximum Fluid temperature: 130 F (54 C)
• Operating Temperature: 14 F to 115 F (-10 C to 46 C)
• Storage Temperature: -40 F to 158 F (-40 C to 70 C)
• Operating Voltage (Model Specific):
  • 115VAC/60Hz, 1ph (1.5 Amp Maximum)
  • 230VAC/60Hz, 1ph (0.7 Amp Maximum)
  • 220VAC/50Hz, 1ph (1.0 Amp Maximum)
  • 240VAC/50Hz, 1ph (1.0 Amp Maximum)
• Power Cord Plug Type (Model Specific):
  • 115V60Hz = NEMA 5/15 (USA)
  • 230V60Hz = NEMA 6/15 (USA)
  • 220V50Hz = CEE 7/VII (EU)
  • 240V50Hz = AS 3112 (Australia/New Zealand)
• Accuracy:
  • +/- 2% of full scale
  • Repeatability +/- 0.5
• Duty cycle: Continuous
• Output adjustment range: 1-100% in 0.1% increments
• Maximum viscosity: 1,000 Centipoise
• Maximum suction lift: 15 ft. Water, 0 psig (4.5 m, 0 bar)
• Display: Backlit LCD, UV resistant.
• Keypad: Positive action tactile switch keypad.
• Enclosure: NEMA 4X (IP66), Powder coated aluminum.
• Applications
  • Acid Injection
  • Boiler Treatment
  • Chemical Metering
  • Cooling Tower Treatment
  • Fertilizer Injection
  • Fluoridation
  • Municipal Water Treatment
  • Paper / Pulp Chemical Feed
  • Plating Chemical Injection
  • Wastewater Treatment
